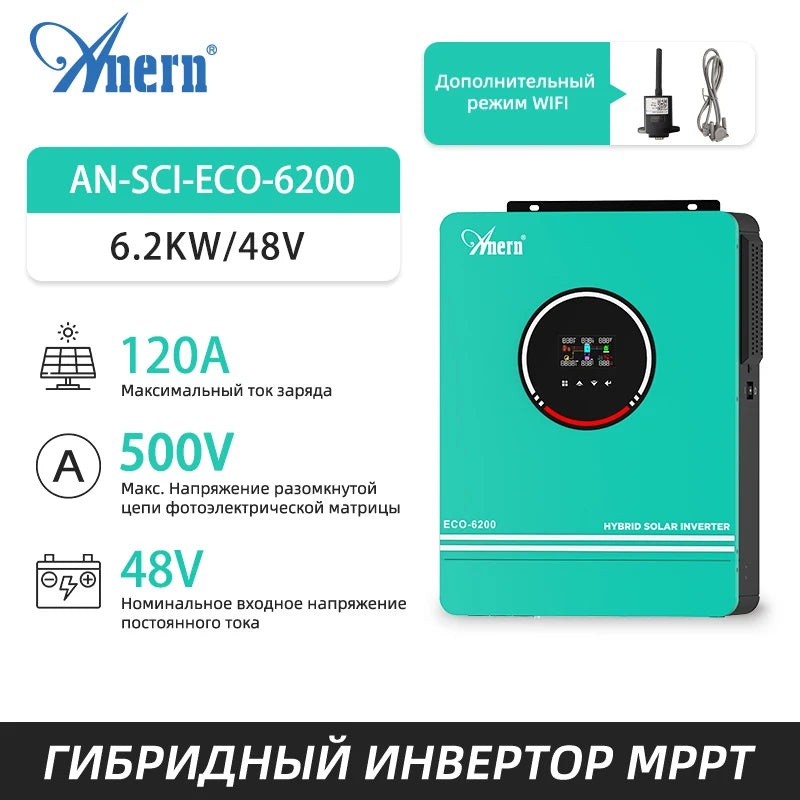

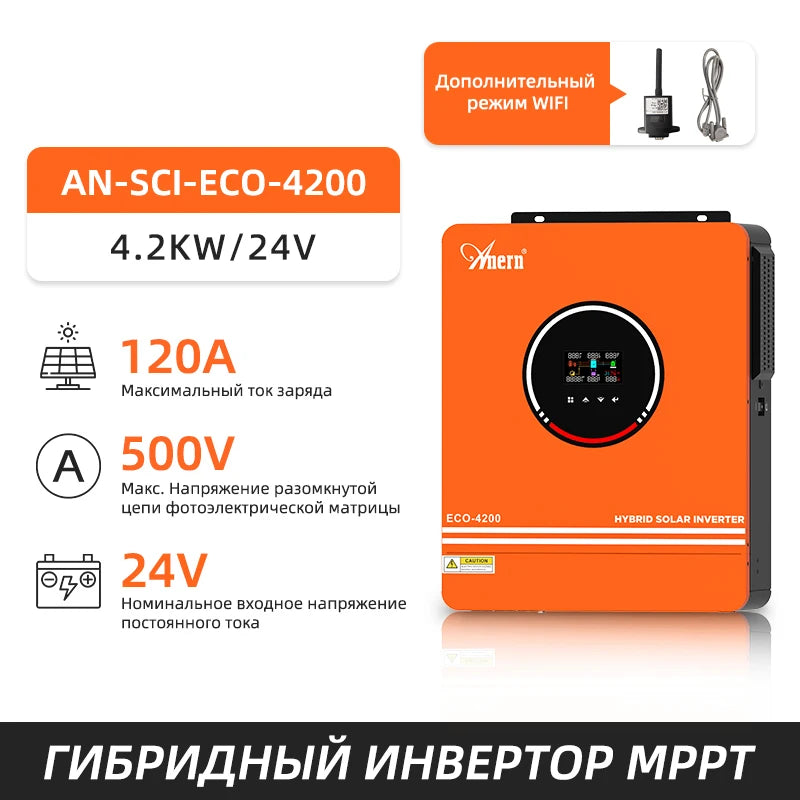

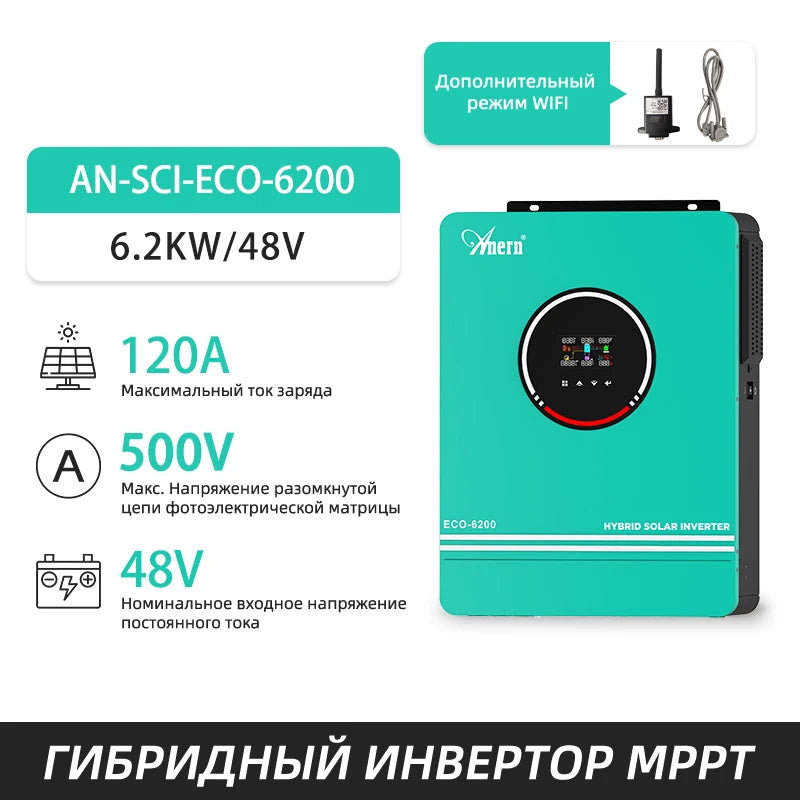

Anern 6.2KW 4.2KW Inverter 48V Hybrid Dual Output Off Grid
Sale price
₦414,187.16
Regular price
₦414,187.16
Regular price
₦414,187.16
Unit price
per
Innovative Technology
User-Friendly Design
Reliable Performance
Couldn't load pickup availability
Description
SPECIFICATIONS
Brand Name: ANERN
High-concerned chemical: None
Is Smart Device: Yes
Output Frequency: 50HZ
Output Power: 1 - 200 KW
Output Type: DUAL
Size: 110*334*423MM
Weight: 9.5/10kg
Inverter use notice
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.

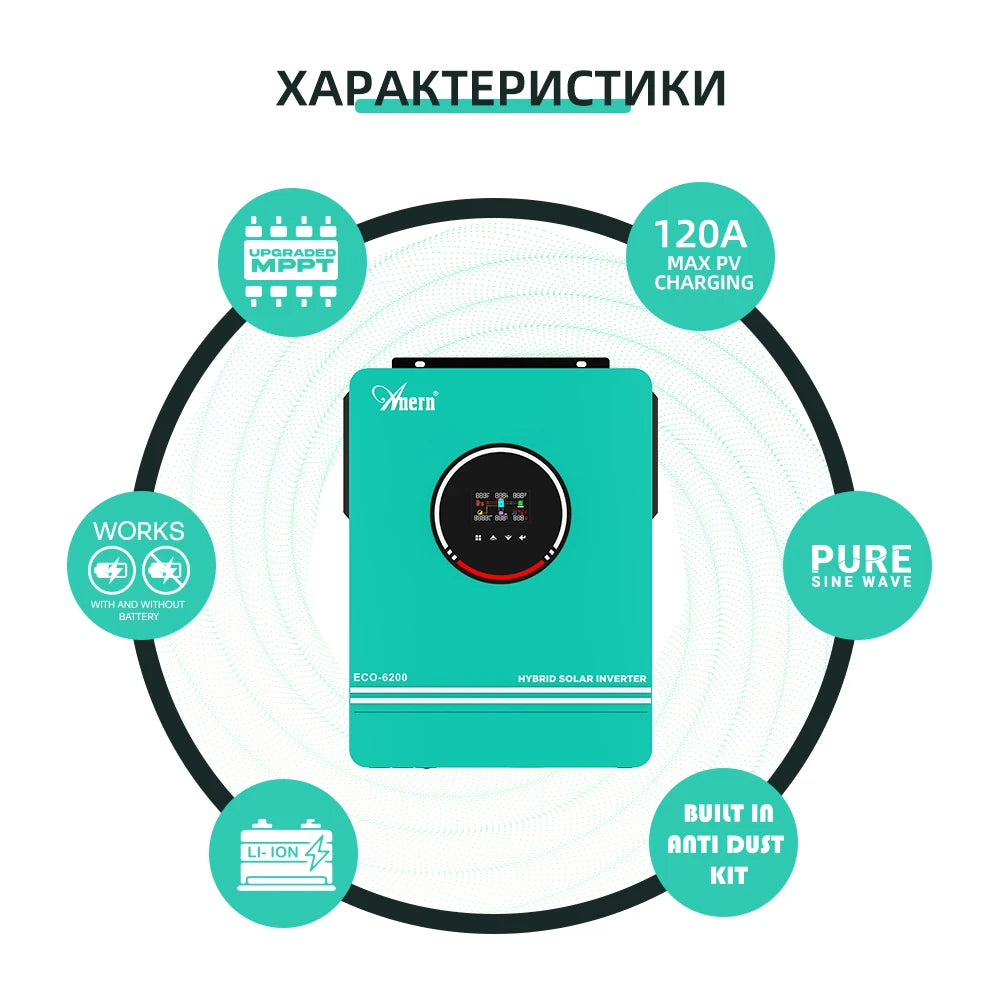

Features of Module
Pure sine wave solar inverter
Inverter running without battery
One-key restoration to factory settings
With function of Lithium battery automatic activation by PV
Bulit-in 120A MPPT solar controller
Max 6200W(for 4.2KW) & 6500W(for 6.2KW) solar charge
High PV input voltage range(60-450VDC)
Built in anti-dusk kit for harsh environment
Smart battery charge design to optimize battery life

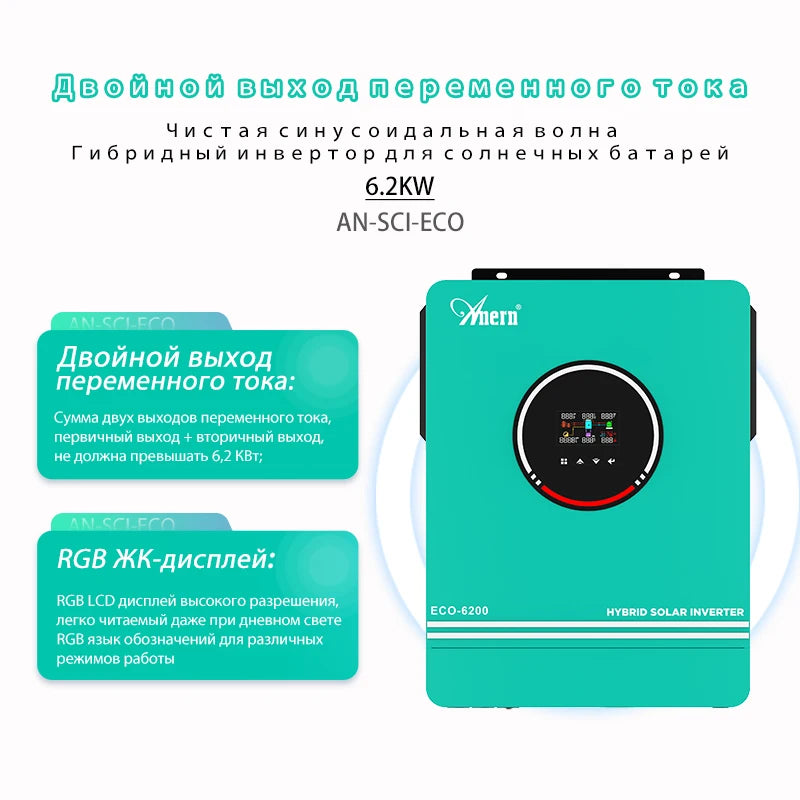

Dual output

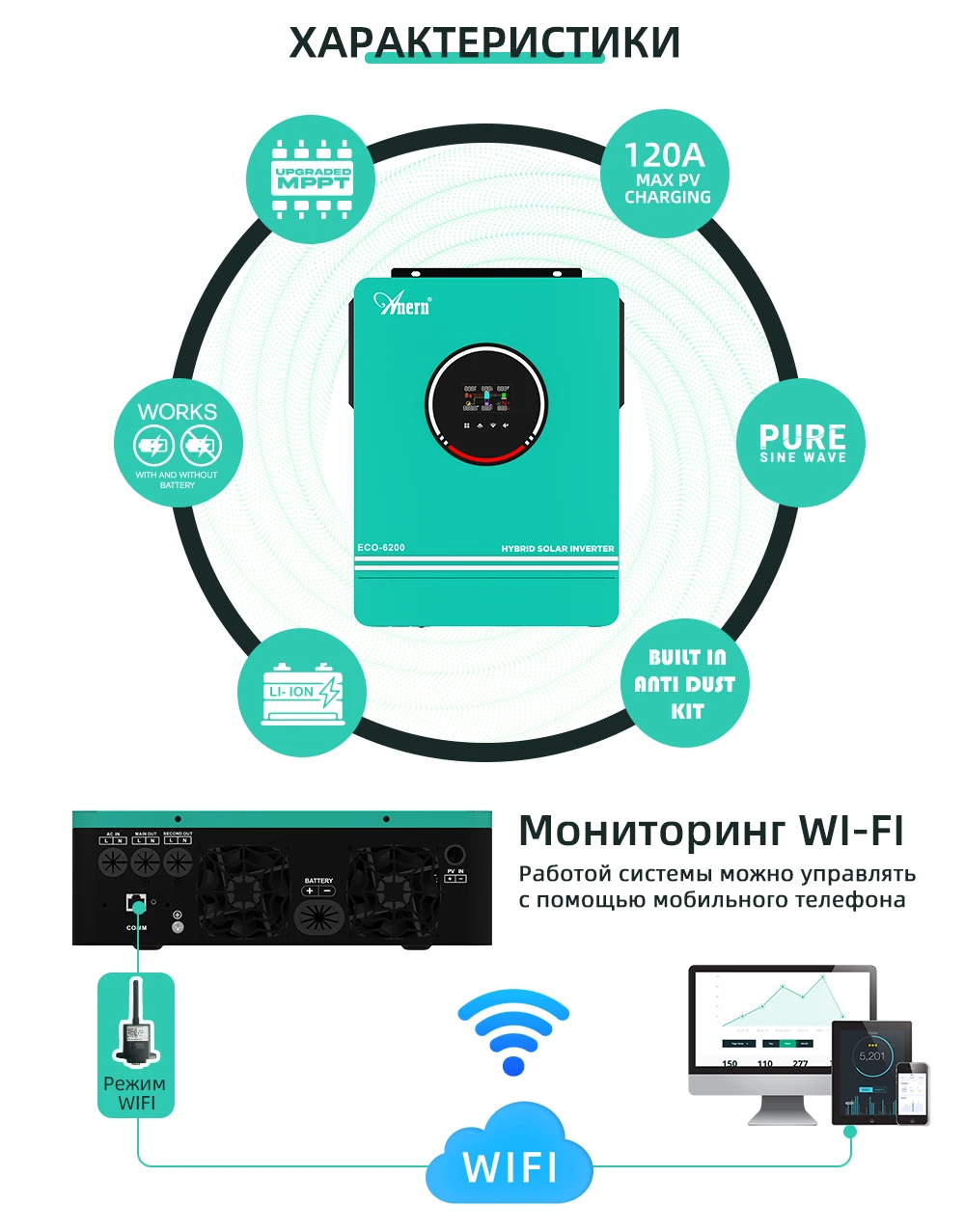

WIFI available for IOS and Android
|
NVERTER MODEL |
SCI-ECO-4.2KW |
SCI-ECO-6.2KW |
|
Inverter Mode Specifications |
||
|
Rated Output Power |
4.2KW |
6.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Output Voltage Regulation |
230Vac±5% |
|
|
Output Frequency |
50Hz |
|
|
Peak Efficiency |
93% |
|
|
Overload Protection |
3s@≥150%load; 5s@101%~150% load |
|
|
Surge Capacity |
2* rated power for 5 seconds |
|
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
|
No Load Power Consumption |
35W |
50W |
|
Two Load Output Power |
||
|
Full Load |
4200W |
6200W |
|
Maximum Main Load |
4200W |
6200W |
|
Maximum Second Load(battery model) |
1400W |
2066W |
|
Main Load Cut Off Voltage |
22VDC |
44VDC |
|
Main Load Return Voltage |
26VDC |
52VDC |
|
Charge Mode Specifications |
||
|
Utility Charging Mode |
||
|
Charging Algorithm |
3-Step |
|
|
AC Charging Current (Max) |
100Amp |
|
|
Floating Charging Voltage |
27Vdc |
54Vdc |
|
MPPT Solar Charging Mode |
||
|
Max. PV Array Power |
6200W |
6500W |
|
Nominal PV Voltage |
240Vdc |
360Vdc |
|
PV Array MPPT Voltage Range |
60Vdc~500Vdc |
|
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
|
Max Charging Current |
120Amp |
|
|
Grid-Tie Operation |
||
|
Nominal Output Voltage |
220/230/240 VAC |
|
|
Feed-in Grid Voltage Range |
195~253VAC |
|
|
Feed-in Grid Frequency Range |
|
|
|
Nominal Output Current |
18.2A |
26.9A |
|
Power Factor Range |
>0.99 |
|
|
Maximum Conversion Efficiency (DC/AC) |
97% |
|
|
General Specifications |
||
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
–10°C - 50°C |
|
|
Storage temperature |
–15°C - 60°C |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
|

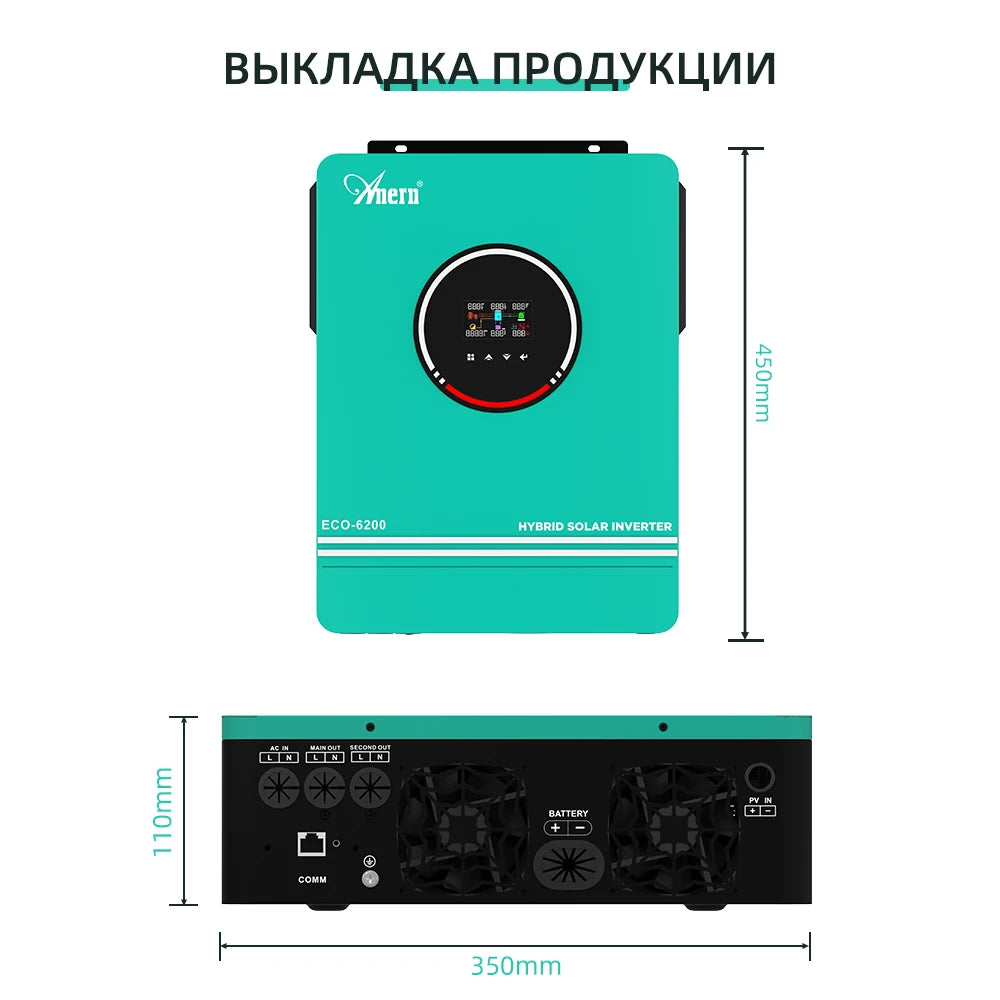

Dimension, D x W x H (mm) |
110*334*423 |
|
|
Net Weight (kgs) |
9.5 |
10 |
