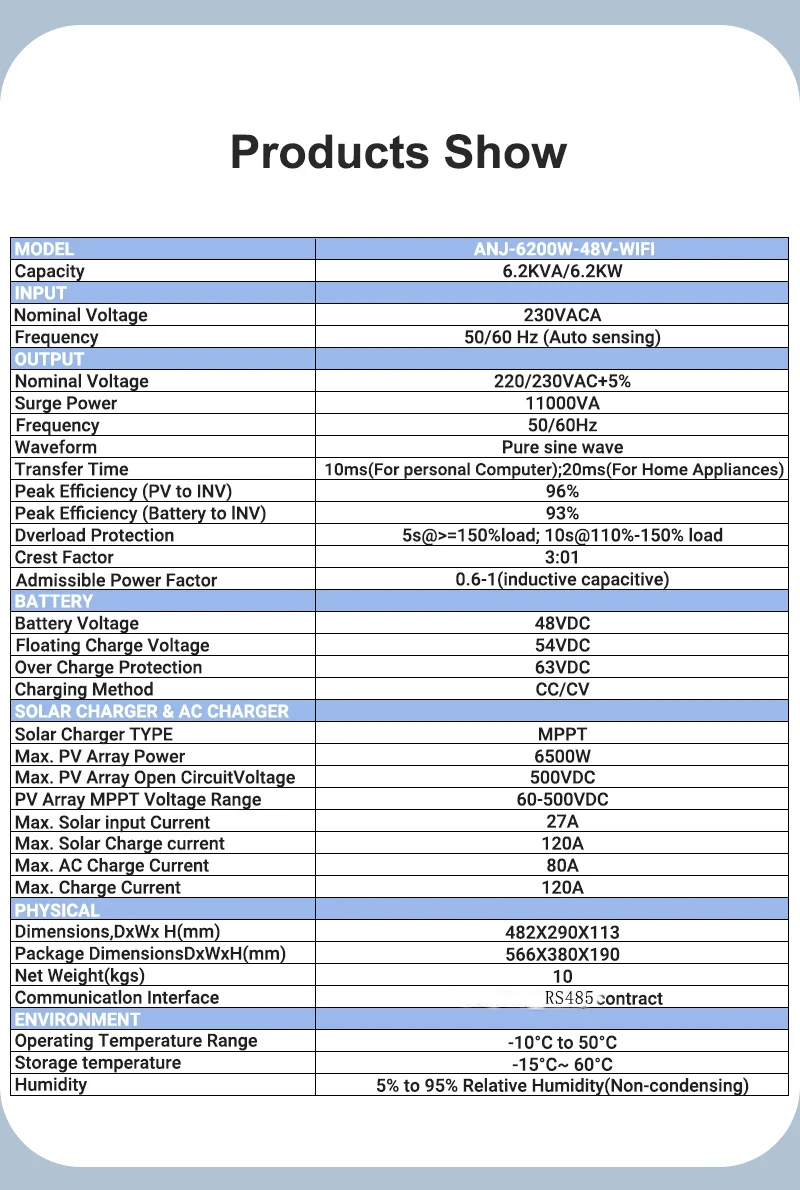

SPECIFICATIONS

Acceptable Voltage Range: 170-280VAC(For personal Computer);90-280VAC(For Home Appliances),90-280VAC(For home appliances)

Battery Voltage: 45VDC

Brand Name: ANENJI

Certification: CE,RoHS

Dimension,D*W*H: 438x295x105mm

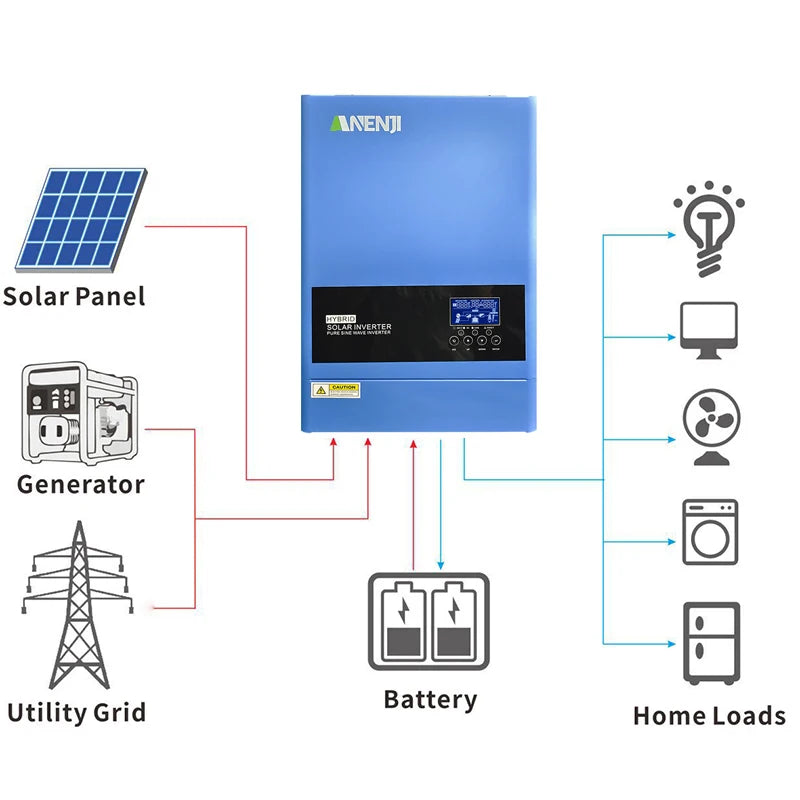

Features: Supports working without batteries,PV 60-500VDC,Support lithium battery activation function

Floating Charge Voltage: 54VDC

Frequency Range: 50/60HZ Auto sensing

High-concerned chemical: None

Humidity: 5% to 95% Relative Humidity (Non-condensing)

Input Voltage: 230VAC

Is Smart Device: Yes

MPPT Range operation Voltage: 60-500VDC

Maximum Efficiency: 98%

Maximum PV Array Open Circuit Voltage: 500VDC

Maximum PV Array Power: 6500W

Maximum Solar Charge Current: 120A

Maximum charge current: 120A

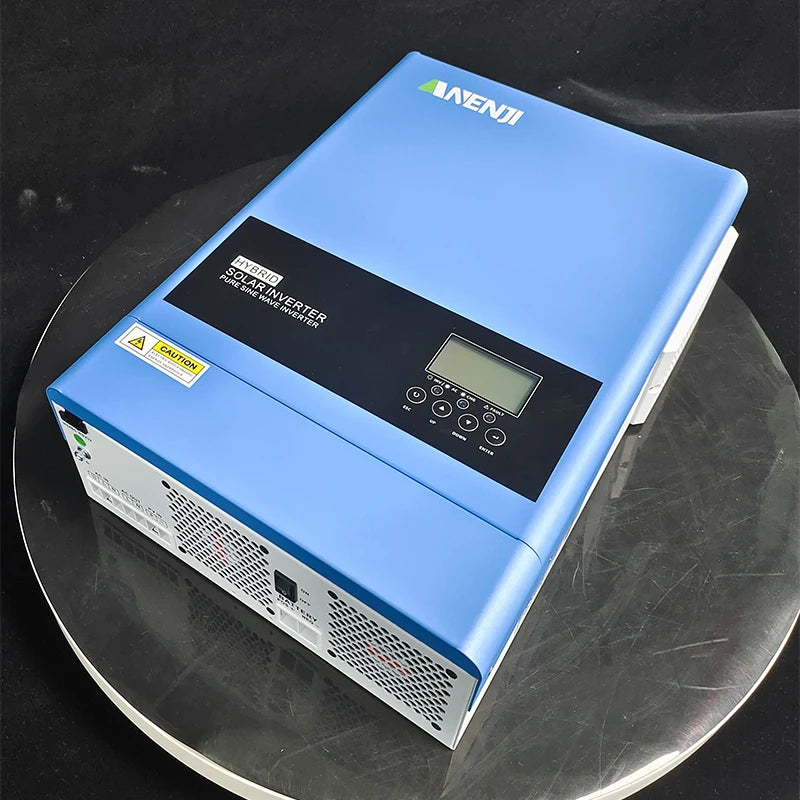

Model Number: ANJ-6.2KW-48V-WIFI

Net Weight: 8.5KG

Operation Temperature: -10℃-55℃

Output AC Voltage Regulati: 230VAC±5%

Output Current: 120A

Output Frequency: 50/60HZ Auto sensing

Output Power: 6200W

Output Type: SINGLE

Overcharge Protection: 61VDC

Rated Power: 6500VA/6200W

Size: 43.8X29.5X10.5CM

Storage Temprature: -15℃-60℃

Surge Power: 6500VA

Transfer Time: 10ms (For Personal Computers),20ms(For Home Appliances)

Wave Form: Pure sine wave

Weight: 8.5KG

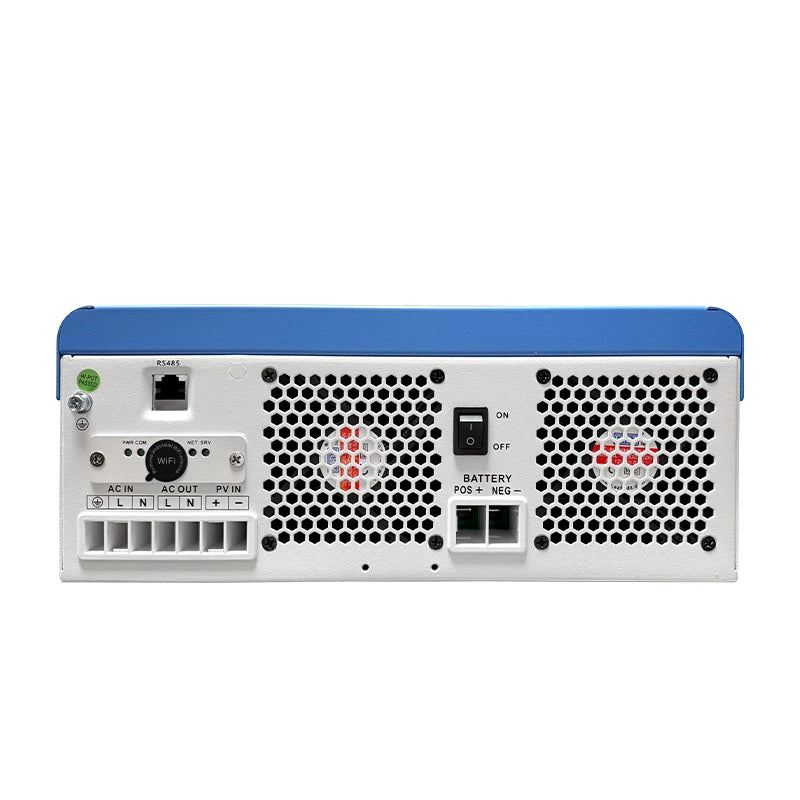

communication interface: RS232/RS485(Standard)GPRS/WIFI

is_customized: Yes

Tips:

For EU country customers,you can place order from china,we will ship to you from our EU warehouse,Finallycheckout price will save 20% more,delivery time for 3-7 days

Features:
