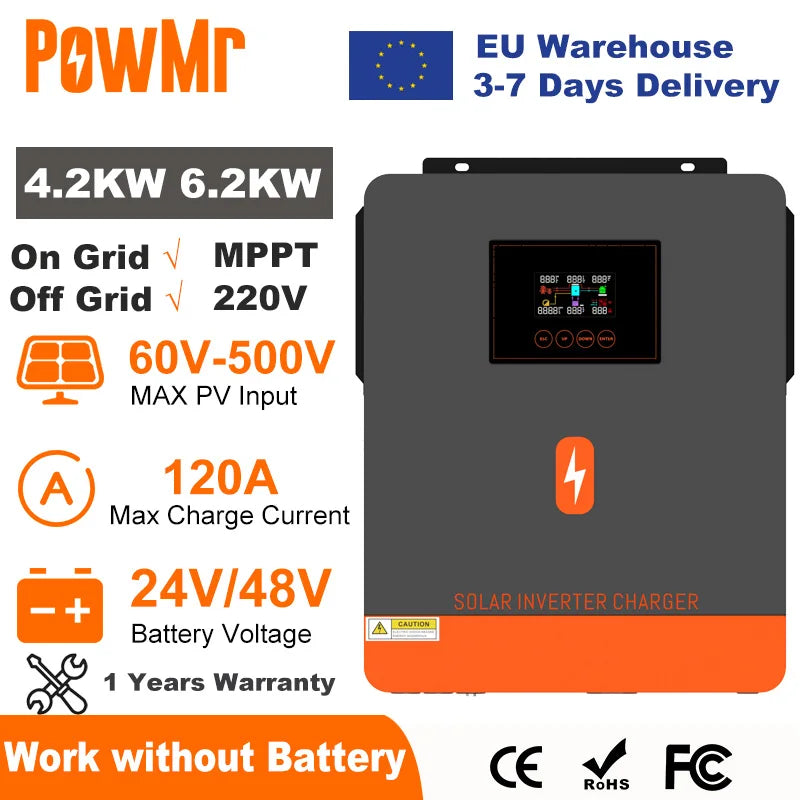

PowMr 6.2KW 4.2KW Hybrid Solar Inverter On Grid Pure Sine Wave

Sale price ₦594,753.98 Regular price ₦974,226.62

Regular price ₦594,753.98

Unit price / per

PowMr 6.2KW 4.2KW Hybrid Solar Inverter On Grid Pure Sine Wave

Innovative Technology

User-Friendly Design

Reliable Performance

Share: Link copied!

Description

SPECIFICATIONS

Battery Type: Lifepo4 Batteries, Lithium Batterie

Battery Voltage: 24V/48V

Brand Name: PowMr

Capacity: 4.2KW/6.2KW

Certification: CE

Feature: Pure Sine Wave Inverter

Function 1: Grid-tie Hybrid Inverter Charger

Function 2: On /off grid inverter

Function 3: Solar inverter

High-concerned chemical: None

Is Smart Device: Yes

Max PV Panel Input Power: 6200W/6500W

Max Panel Input Voltage: 450V/500V

Maximum AC Charging Current 80A: 80A

Maximum Solar Charging Current: 120A

Model Number: POW-HVM4.2M-24V-N/POW-HVM6.2M-48V-N

Nominal Output Voltage: 220/230/240VAC

Output Current: MPPT 120A

Output Frequency: 50HZ 60HZ

Output Power: 1 - 200 KW

Output Type: SINGLE

Rated Output Power: 4200W/6200W

Size: 420*310*120mm

Type 1: Grid Tie Inverter

Type 2: MPPT Solar Inverter

Type1: DC/AC Inverters

Weight: 10KG

is_customized: Yes

PowMr 6.2KW 4.2KW Hybrid Solar Inverter On Grid Pure Sine Wave Inverter 24V 48V 230V Dual Output with MPPT 120A Solar Charger

INVERTER MODEL	POW-HVM4.2M-24V-N	POW-HVM6.2M-48V-N
Line Mode Specifications
Input Voltage Waveform	Pure Sine Wave(Utility or Generator)
Nominal Input Voltage	230Vac
Max AC Input Voltage	300Vac
Efficiency(Line Mode)	>95%( Rated R load,battery full charged)
Transfer Time	10ms typical(UPS);20ms typical(Appliances)
Inverter Mode Specifications
Rated Output Power	4.2KW	6.2KW
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	230Vac±5%
Output Frequency	50HZ
Peak Efficiency	0.93
Overload Protection	3s@≥150% load;5s@101%~150% load
Surge Capacity	2* rated power for 5 seconds
Nominal DC Input Voltage	24Vdc	48Vdc
Cold Start Voltage	23.0Vdc	46.0Vdc
No Load Power Consumption	30W	50W
Charge Mode Specifications
Charging Algorithm	3-Step
AC Charging Current (Max)	100A	100A
Max. PV Array Power	6200W	6500W
Nominal PV Voltage	240Vdc	360Vdc
PV Array MPPT Voltage Range	60Vdc~450Vdc (Battery Connected) 120Vdc~450Vdc (Battery Disconnected)	90Vdc~500Vdc (Battery Connected) 120Vdc~500Vdc (Battery Disconnected)
Max. PV Array Open Circuit Voltage	500Vdc
Max Charging Current(AC charger plus solar charger)	120A	120A
Grid-Tie Operation
Nominal Output Voltage	220/230/240VAC
Feed-in Grid Voltage Range	195-253VAC
Feed-in Grid Frequency Range	49-51±1Hz/59-61±1Hz
Nominal Output Current	18.2A	26.9A
Maximum Conversion Efficiency(DC/AC)	97%
Two Load Output Power
Full Load	4200W	6200W
Maximum Main Load	4200W	6200W
Maximum Second Load(battery model)	1400W	2066W
Main Load Cut Off Voltage	26VDC	52VDC
Main Load Return Voltage	27VDC	54VDC

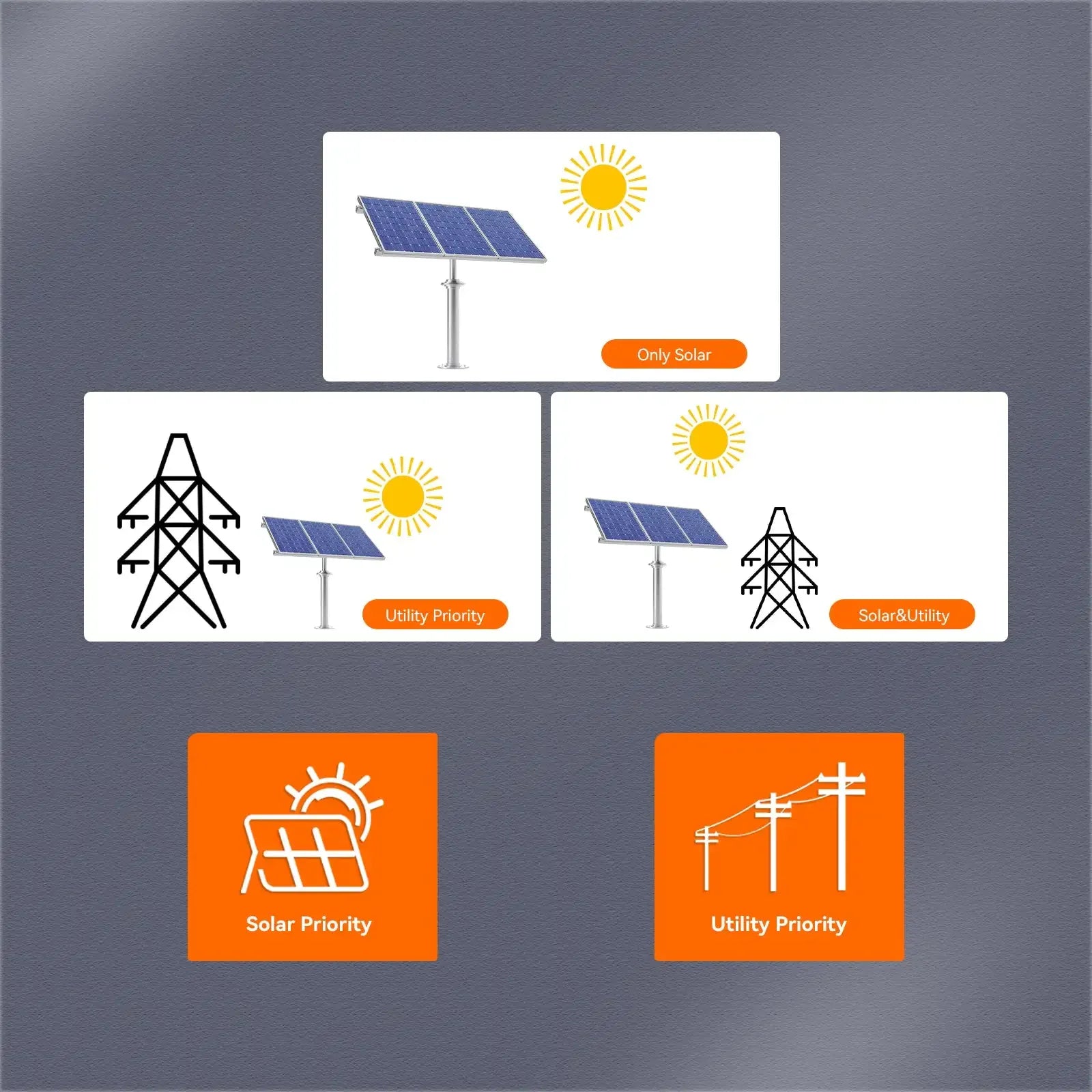

【Charging & Output Modes】

Solar Inverter support 3 charging modes(Choose solar power/Utility power/AC power to charge battery) and 3 output modes(choose Sola/Utility/Battery which source to power your load at first priority)

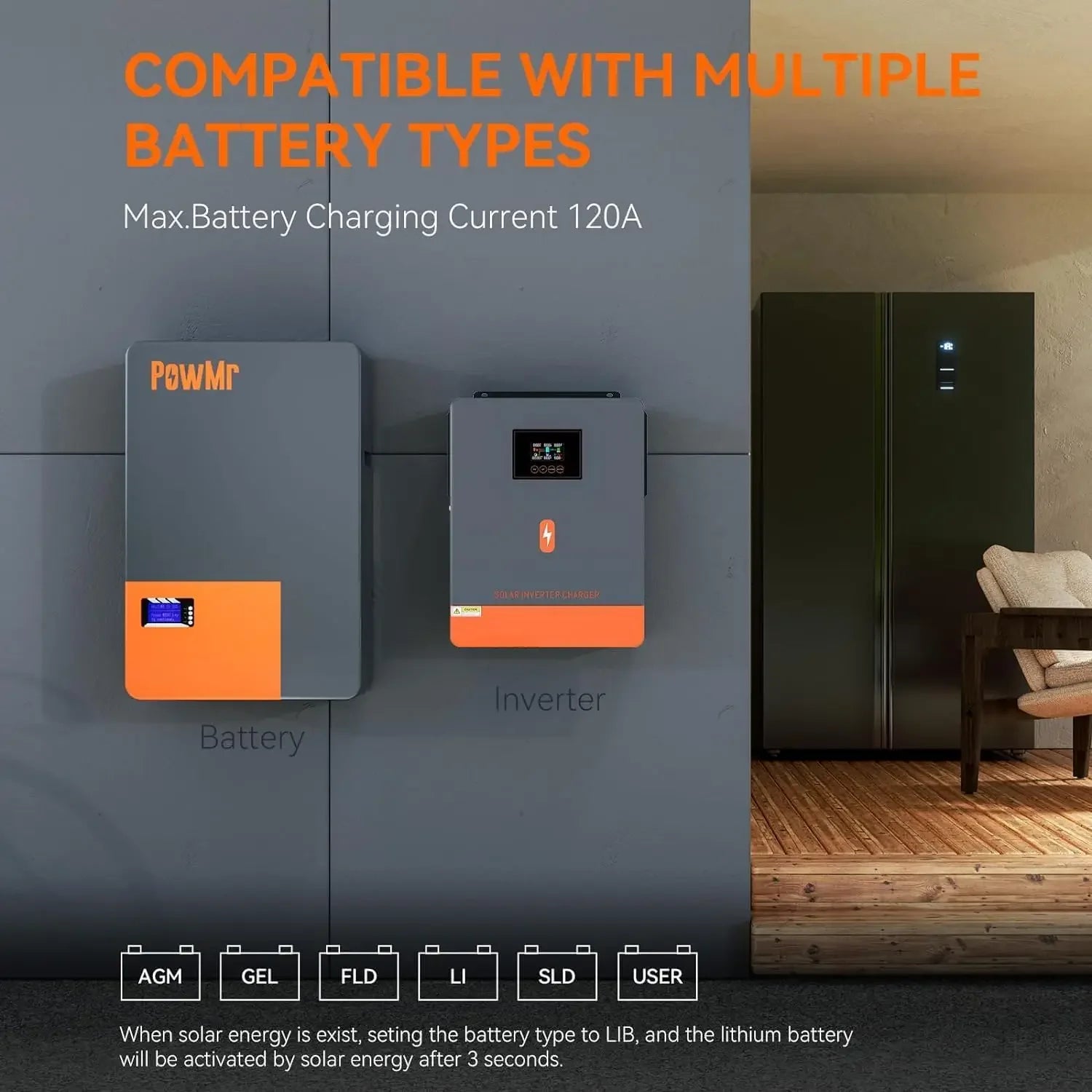

【Compatible various batteries】

Compatible with various 24V(4.2KW) 48V(6.2KW) batteries such as AGM, Gel, Lead-acid, Lithium-ion and LiFePO4 batteries. Built-in lithium activation along with comprehensive battery protection features including short circuit protection, over/under voltage protection effectively protects battery life.
