PowMr MPPT 100A 80A Solar Charge Controller Solar Panels
Sale price
₦248,940.36
Regular price
₦248,940.36
Regular price
₦248,940.36
Unit price
per
Innovative Technology
User-Friendly Design
Reliable Performance
Couldn't load pickup availability
Description
SPECIFICATIONS
Application: Charger Controller,Solar System Controller,Voltage Controller,Lighting Controller
Battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for othe
Brand Name: PowMr
Certification: CE
Charging mode: MPPT Maximum power point tracking automatically
Enclosure: IP32
High-concerned chemical: None
Is Smart Device: No
Maximum Current: MPPT 80A/100A
Model Number: POW-M80-PRO/POW-M100-PRO
Rated output current: MPPT 80A/100A
The maximum PV input voltage (Voc): 160V
Version: PowMr 2024
is_customized: Yes
PowMr MPPT 100A 80A Solar Charge Controller Solar Panels Regulator 12V 24V 36V 48V Parallel Up 12 Units For Lead Lithium Battery
|
Models |
POW-M80-PRO |
POW-M100-PRO |
|
Solar Input Specification |
||
|
Max. Solar Array Open-Circuit Voltage |
160V |
|
|
Maximum Input Power |
For 12V System(960W)
For 24V System(1920W)
For 36V System(2880W)
For 48V System(3840W)
|
For 12V System(1200W)
For 24V System(2400W)
For 36V System(3600W)
For 48V System(4800W)
|
|
Battery Charging Specification |
||
|
Charging Technology |
MPPT |
|
|
Charging Algorithm |
3 Stages |
|
|
Charging Algorithm |
12V/24V/36V/48V |
|
|
Battery Voltage Range |
9~60V |
|
|
Rated Charging Current |
80A |
100A |
|
Maximum Efficiency |
≤98% |
|
|
MPPT Efficiency |
>99% |
|
|
Temperature Compensation |
-3mV/°C/2V（default） |
|
|
Self-Consumption |
44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V |
|
|
Environment Specification |
||
|
Operating Temperature Range |
-35°C~+45°C |
-35°C~+45°C |
|
Humidity Range |
≤95%，Non-condensing |
≤95%，Non-condensing |
|
Altitude |
<3000m |
<3000m |
|
General Specification |
||
|
Protection Level |
IP32 |
|
|
Dimensions |
260x180x75mm |
315x195x80mm |
|
Net Weight |
2KG |
2.7KG |

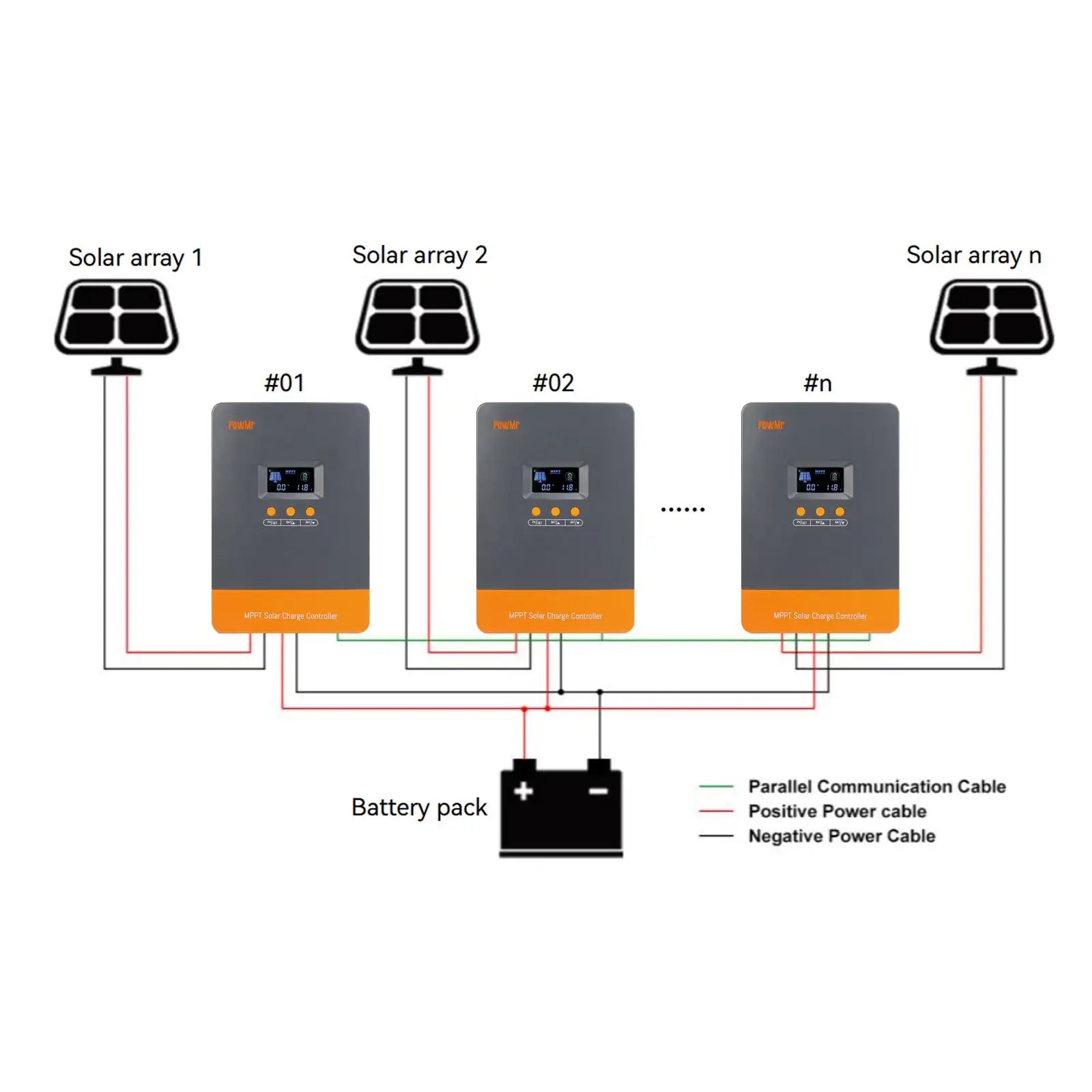

Parallel guide:
Step 1: Install the parallel equipment at the same level, keeping a distance of at least about 75mm between the equipment
Step 2: Communication cable connection
Step 3: Connect all parallel controllers to the same battery pack in turn
Step 4: Connect each controller to its own photovoltaic array
Step 5: Once wiring is complete, power on by closing the battery circuit breaker. After starting up, please refer to Chapter 3.4 to define the master and slave machines, and then complete the related settings of the entire parallel system through the master machine.
