SPECIFICATIONS

Battery Included: No

Brand Name: LARKKEY

Choice: yes

DIY Supplies: Electrical

Display Type: LCD

High-concerned chemical: None

Measuring Energy Range: 0-9999kwh

Operating Temperature: - 40-150°C

Output Voltage: AC 80V-300V

Phase: single phase

Power Source: AC

Power Supply: AC

Rated Voltage: 220V

feature1: Fault record

feature2: Over temperature protection

feature3: Delay protection

feature4: Overload protection

feature5: Leakage detection function

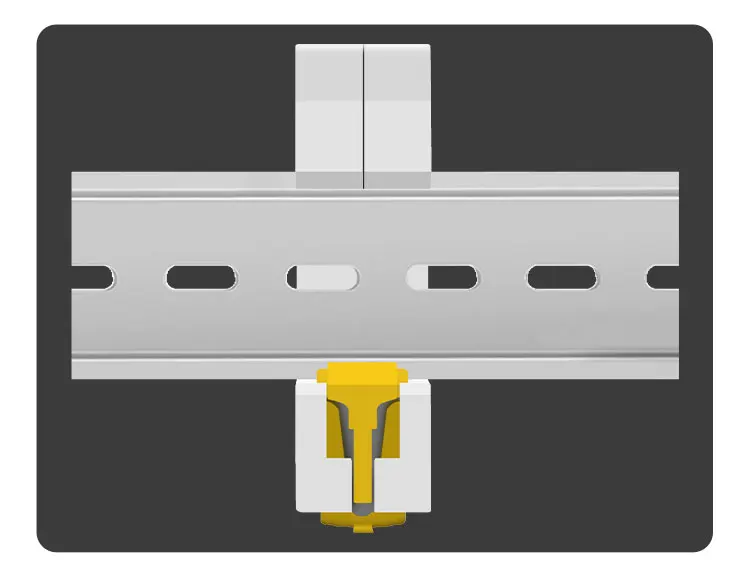

feature6: Din Rail

Product description

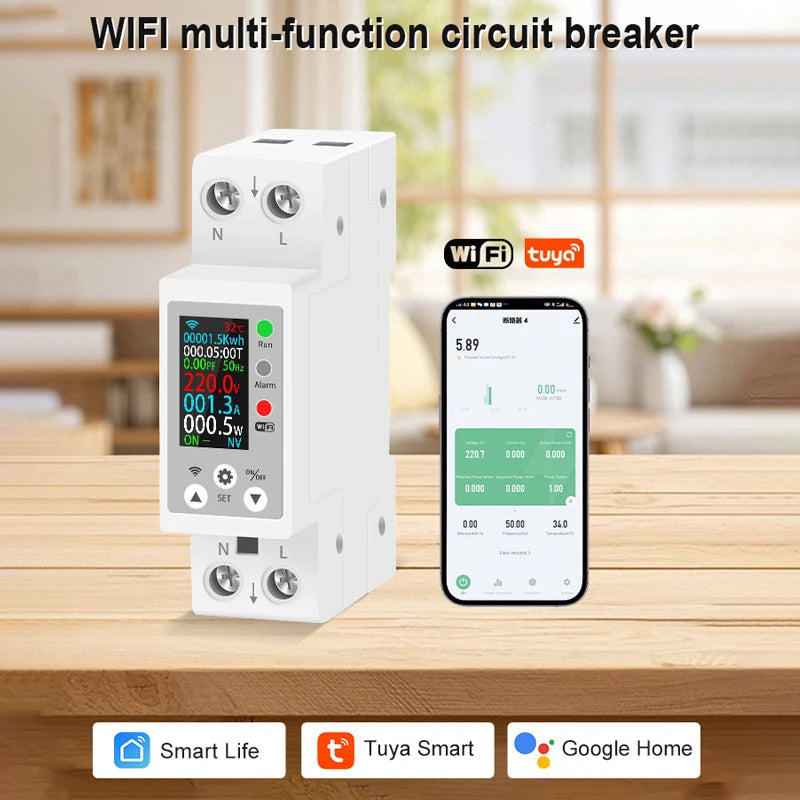

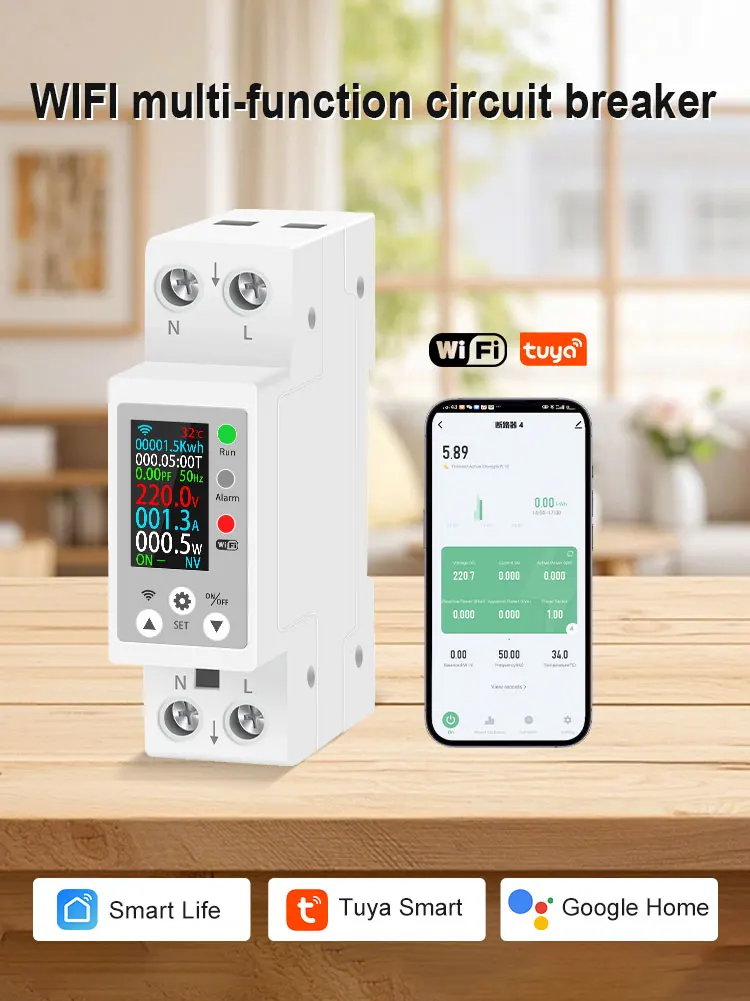

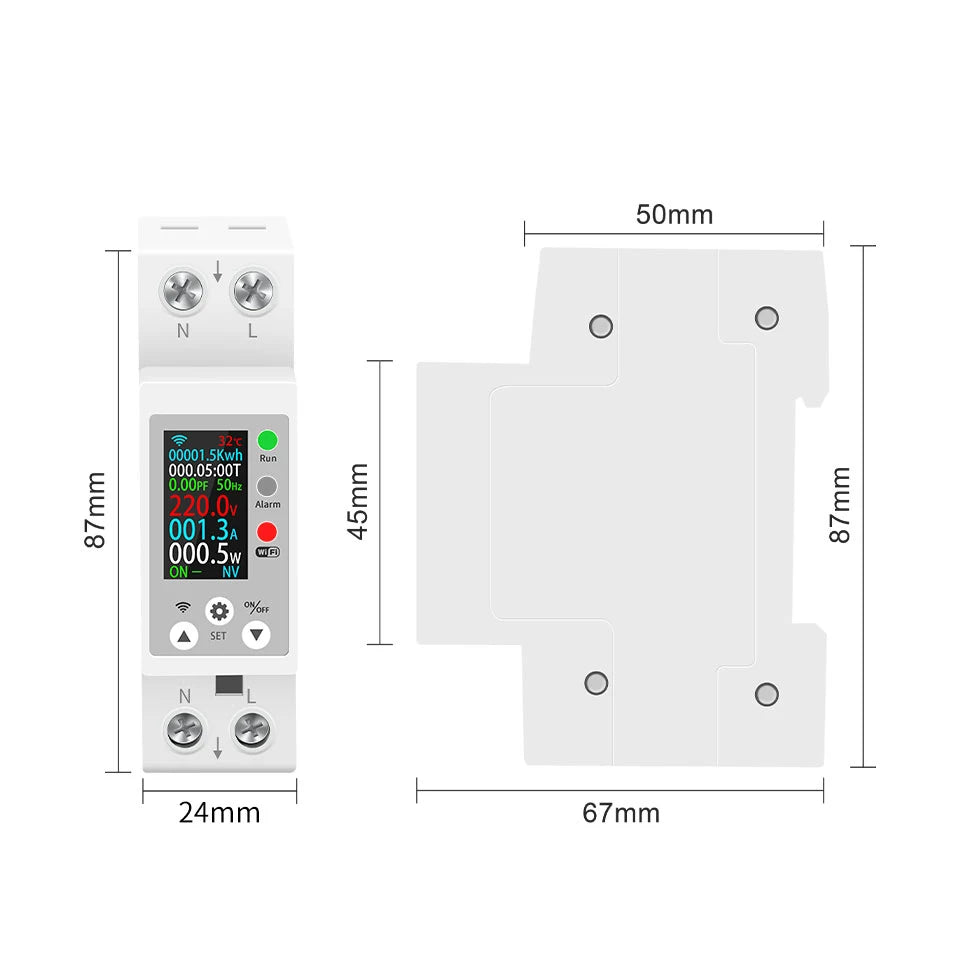

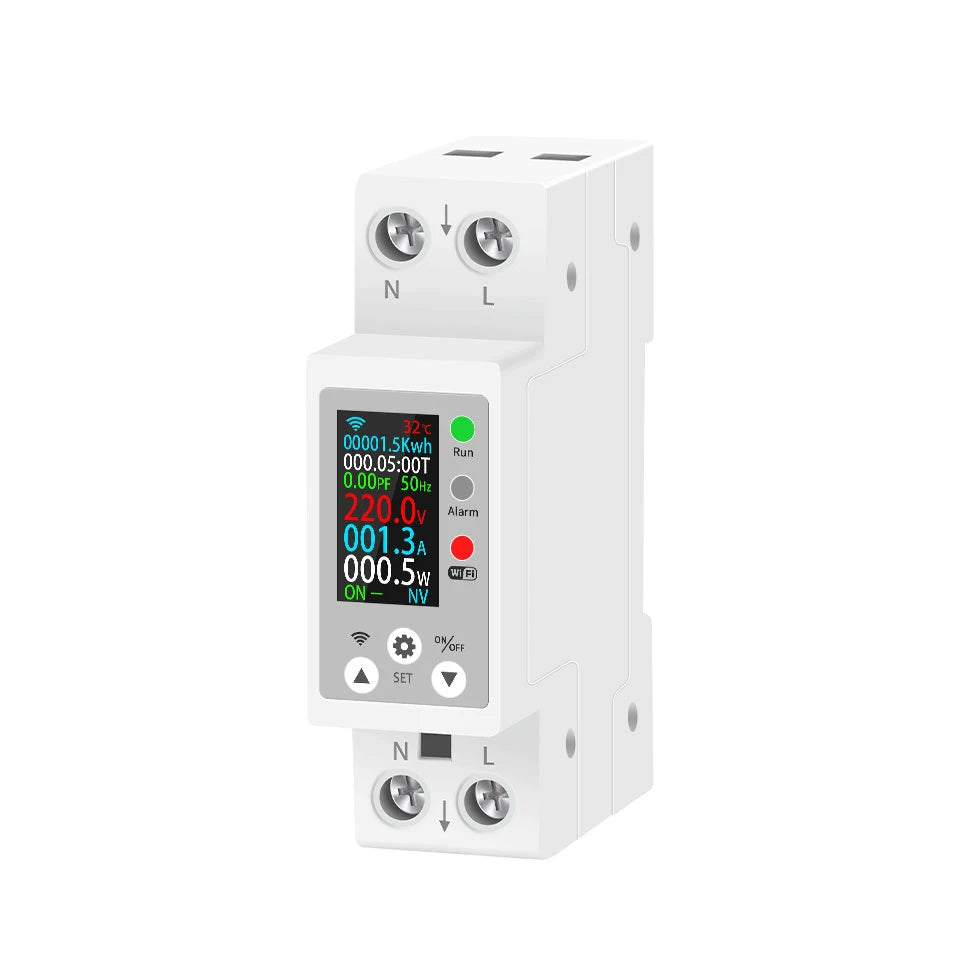

◆The multi - functional Wlfl guide rail meter adopts a rail - type design, which is small in size, compact instructure and simple in installation;

◆

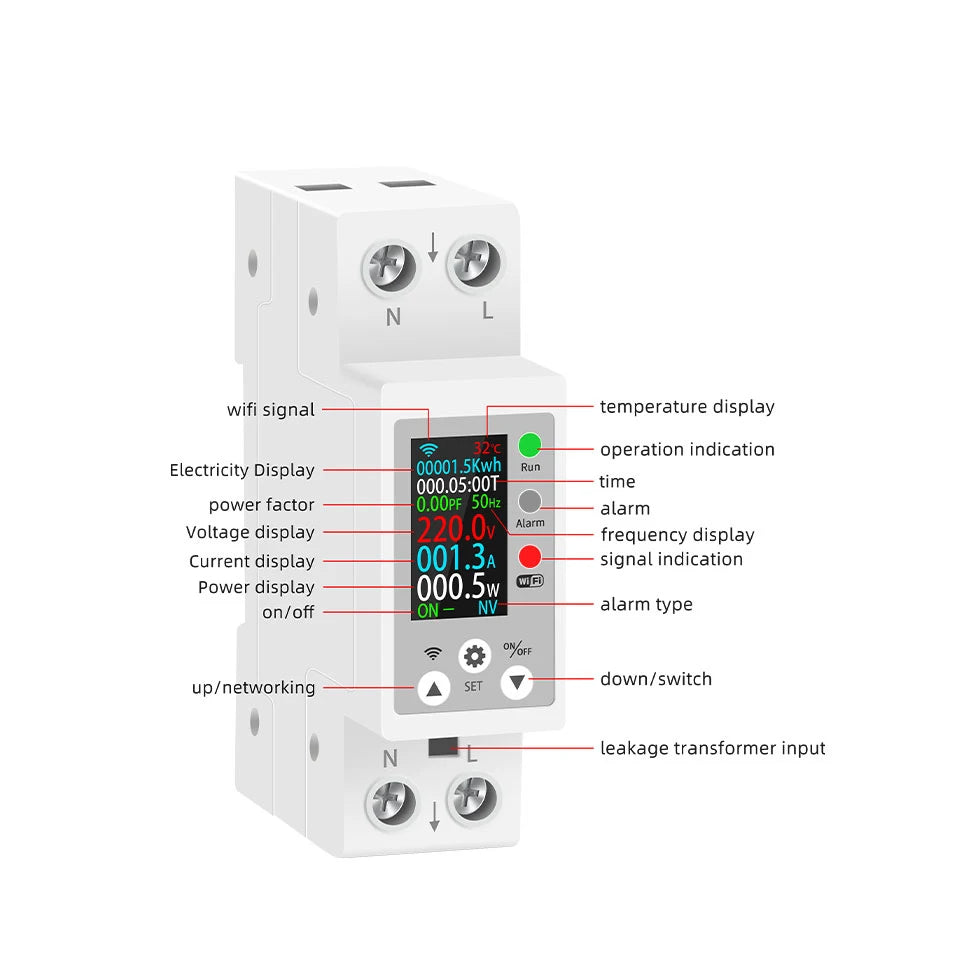

it uses an LCD display screen to display current, voltage, electricity, power,frequenc and other electrical parameters, is convenient for users to acquire data and easy to operate.

◆it has good anti-electromagnetic interference capabilities, meets various needs of power management, facilitates the realization of terminal - intelligent power metering, and facilitates the retrofitting of power meters in the latel transfor matior of the lighting system.

◆it is widely used in commercial squares, science and technology parksuniversities and other occasions where biling is required, it can also be jointly deployed with energy consumption monitoring and energy management systems.

◆its application scope includes property biling management, electricity metering power demand side management, energy consumption management and energy-saving analysis, other low voltage power systems, etc.

Product function

◆On/Off Switch

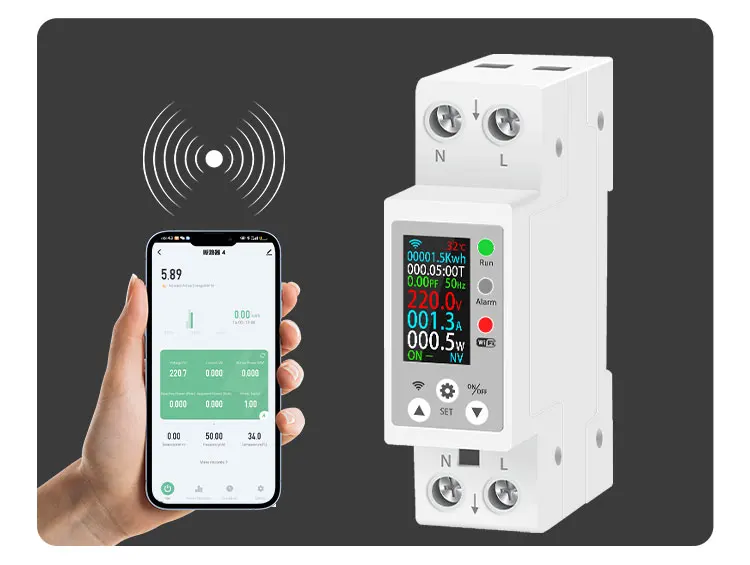

◆Remote Control

◆Voice Control

◆timing

Timing mode/Countdown mode/Cyclic timing mode

◆Relay Status

◆Energy Monitoring

◆Prepaid function

◆Real-time Voltage, Real-time Current, Active Power,Reactive PowerApparent Power ,Power Factor

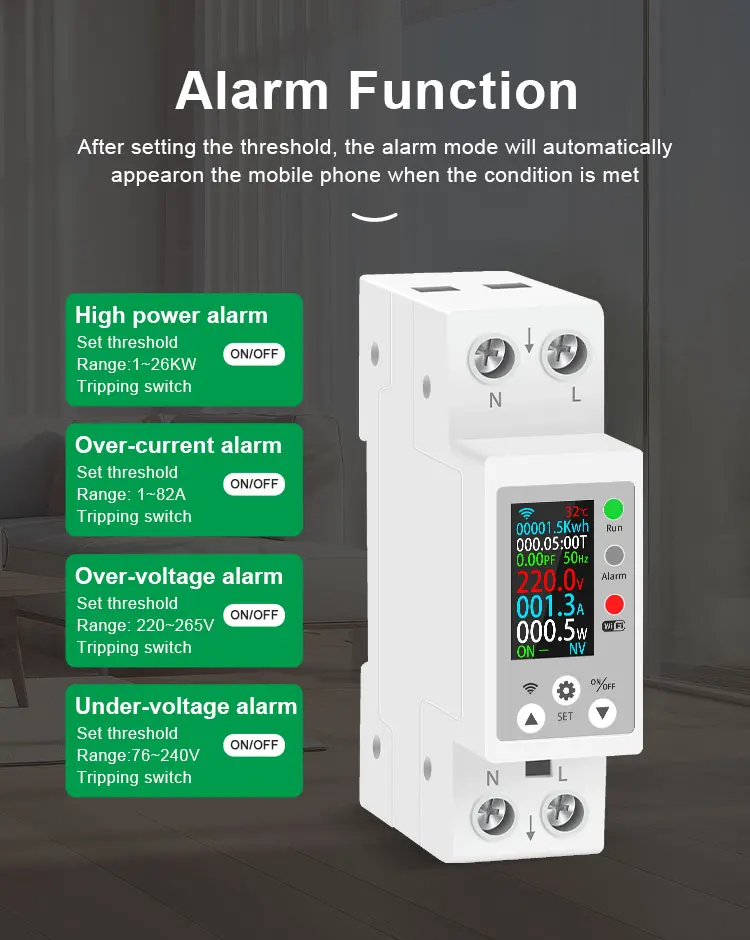

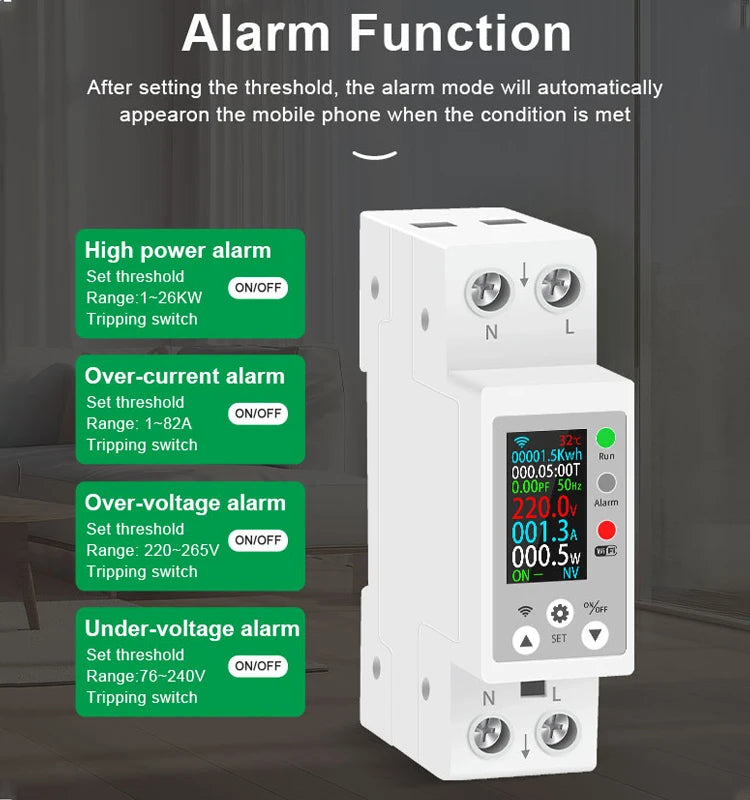

◆Over/Under Voltage Protection

◆Over Current Protection

◆High Temperature Protection

◆Overload Protection

◆Expense Management

◆Delay Protection

◆Leakage detection function

Product parameter

Rated voltage:220V/110v

Operating voltage range:AC 80V-300V

Frequency:50/60Hz

Power range:0-9999kwh

Timing range:0-999 days

Temperature range:-40-150°C

Power factor:0-1.0PF

Over voltage setting range:130-300V

Under voltage setting range:75-210V

Over current setting range:1-63A

Over power setting range:1-15KW

Over temperature setting range:0-150°C

Rated insulation voltage:400V
