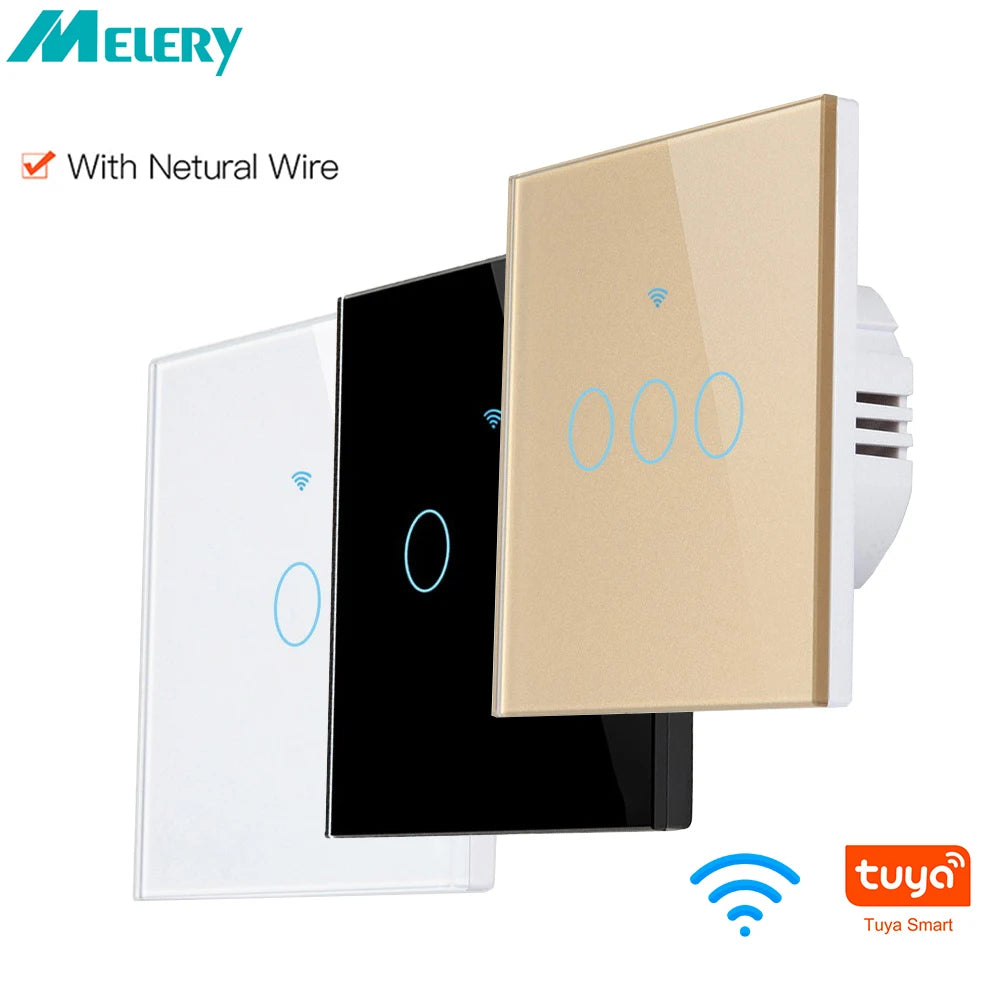

Touch Light Switch Glass Touch Screen Touch Panel Voice Control Wireless Wall Switch work with Alexa Echo,Echo Dot,Google Home

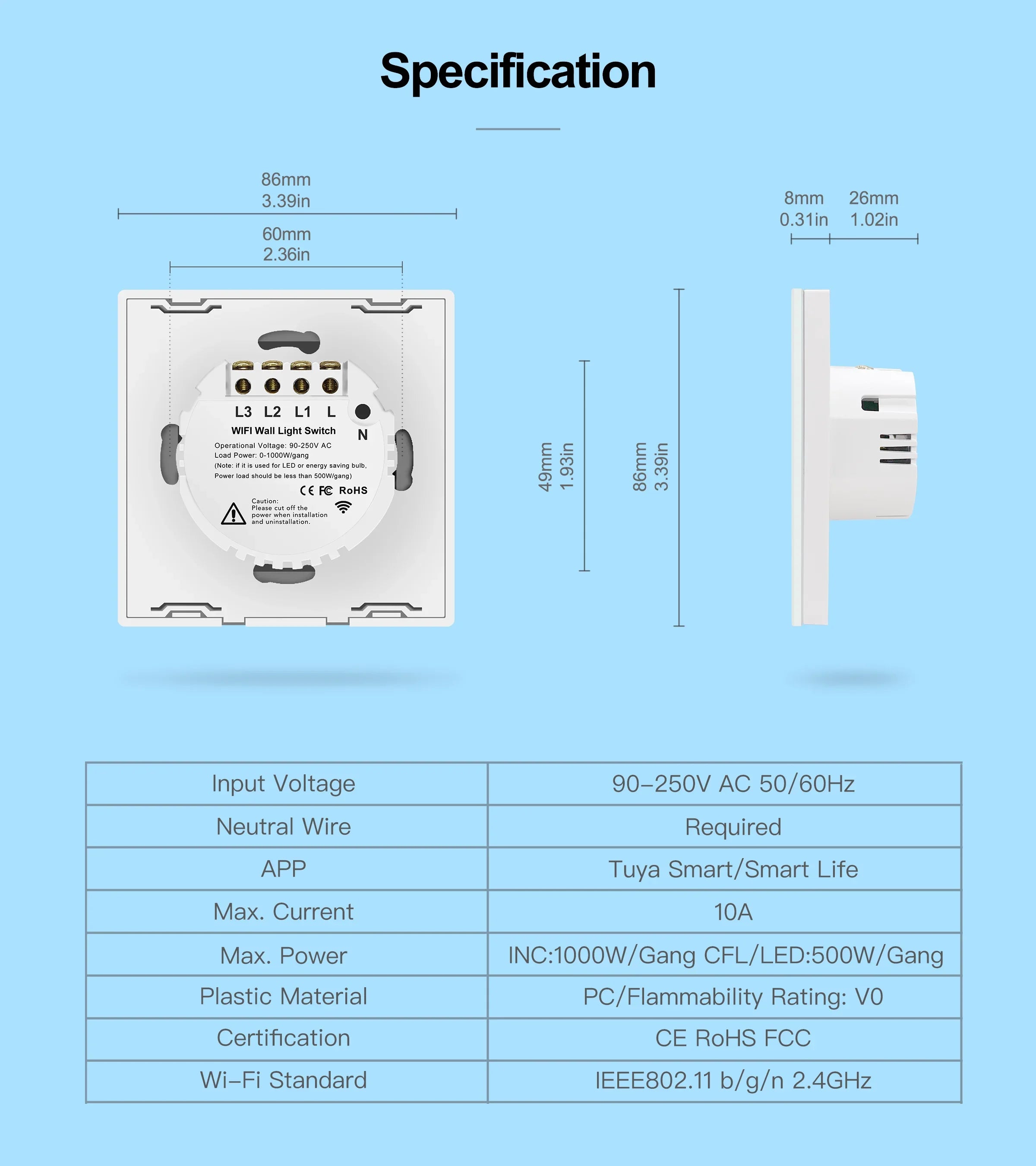

Specifications:

Power supply: AC 100-250V

Maximum current: 10A / road

Maximum power: 2000W / road

Wireless standard: 802.11 b/g/n

Security mechanism: WPA-PSK/WPA2-PSK

Product material: PC V0 fireproof + tempered glass panel

WIFI remote control: turn the light on/off from anywhere

App Support: Free iOS and Android Phone Apps (Smart Life)

Voice Control: with Amazon Alexa, Google Home Voice Control

Independent control: control each way separately

Synchronization status: real-time device status provided on the APP

Timing function: Set the reservation/countdown timer to turn on/off at the specified time

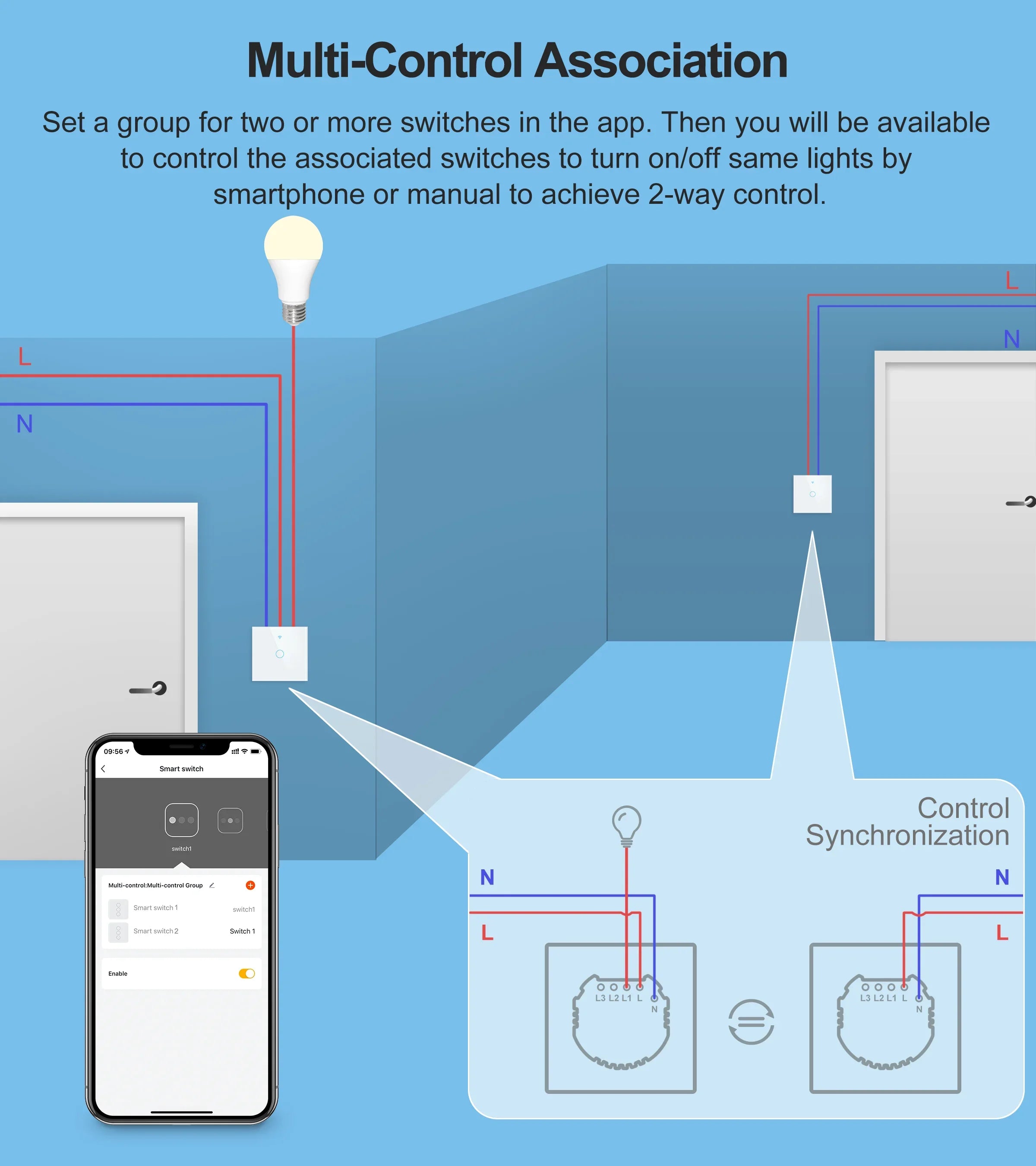

Group Control ,2 Way Control, Ladder Corridor Switch.
installation in parallel, or 2 or 3 lighting switches the same lamp
Work perfectly in ladder mode, programmed master and slave mode from the Smartlife application
only one is going to be stitched into the spotlight and the other switch is just going to connect to phase and neutral to power only switch

Smart Wi-Fi Touch Wall Switch
This touch switch supports the maximum power of 2200W, which can work with most lights and other electrical devices, connect to your smartphone and control your home appliances with ease.


Intelligent and strong function
The user can control this Wi-Fi plug-in via the voice via the Alexa / Google device to turn off the switch whose support timer function (works in offline state) that includes countdown; single and repeat timers can be Set Max. 8 groups of timers

APP remote control
The user can use a smartphone to remotely control the home electronics remotely anytime, anywhere as long as the phone has 2G / 3G / WIFI network compatible with iOS and Android operating system with eWeLink.

APP TIMING FUNCTION
The intelligent timer switch will automatically turn on after setting a timer for this switch, which is essential for daily scheduling, and bring you a comfortable and intelligent lifestyle.

SENSITIVE TOUCH CONTROL
Tempered glass touch screen of this diy smart switch is sensitive to the touch of control, premium durable glass material provides up to 20 million touch figures through our rigorous testing

EASY SETTING UP
Download the Smartlife from the App Store or Google Play Store and connect your mobile device to your 2.4 GHz Wi-Fi network to find your light switch, then you can turn the lights or control other electrical devices with ease

OUR WARRANTY
Our wireless smart switch is certified will be your best choice, which is CE / FCC / RoHS / ETL certified, and we will provide you 12 month warranty to make sure you are buying at no risk. If you have questions or hesitations, please contact us our support team will respond within 24 hours.


Reminder:

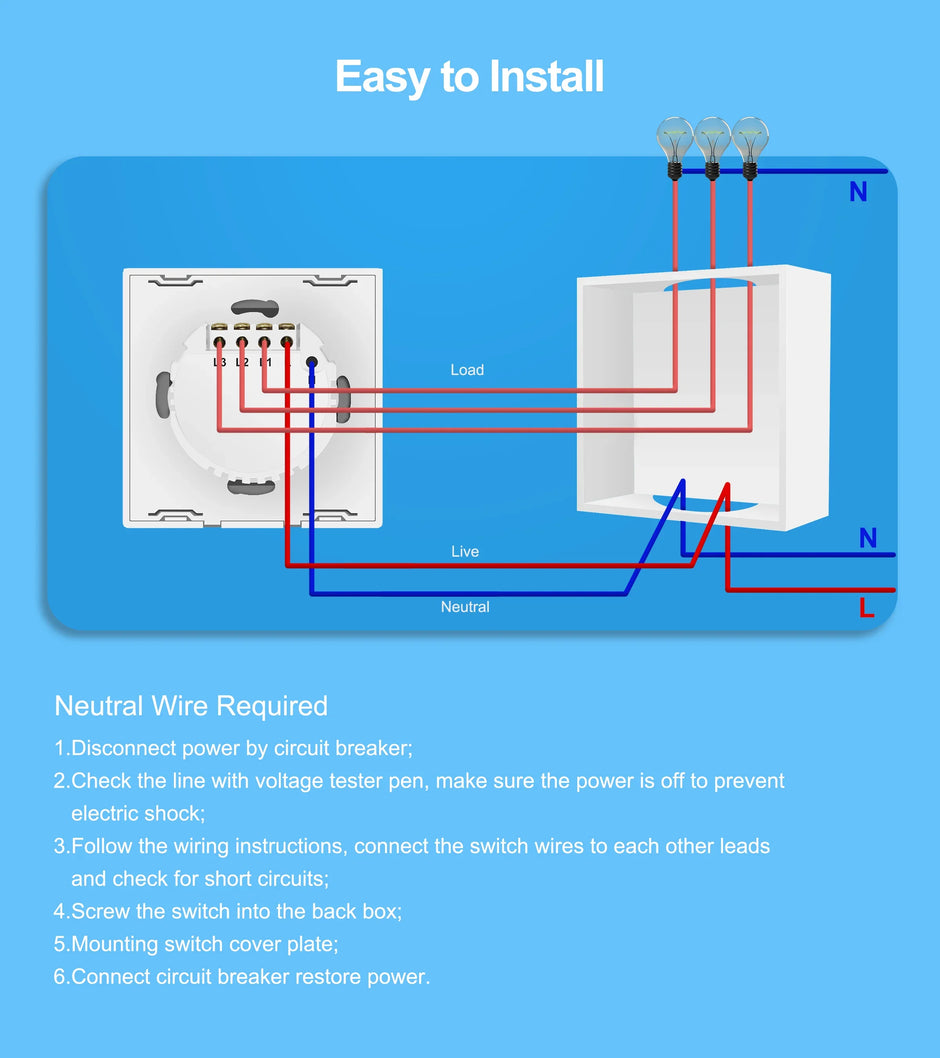

This switch should be powered by the live and neutral lines. Some houses have wall switches that may not have a neutral line.




How to Connect Tuya WiFi Devices to Router/Gateway, Alexa & Google Home: Troubleshooting Guide

1. Step-by-Step Connection Guide

1.1 Connect to Router/Gateway

Prerequisites

• Ensure your Tuya device is powered on.
• Prepare a 2.4 GHz Wi-Fi network (5 GHz is not supported by most Tuya WiFi devices) .
• Download the latest Tuya Smart App (international version) from App Store or Google Play.
• For Thread/Zigbee devices, prepare a compatible Tuya Matter Gateway .

Connection Steps

1. Enter Pairing Mode: Power on the device, then press and hold the reset button (or follow product-specific steps, e.g., toggle power 5 times for smart lights) until the indicator flashes quickly . For gateways, plug in the network cable and enter pairing mode by long-pressing the reset button .
2. App Operation: Open Tuya Smart App, tap the "+" icon in the top-right corner. Select "Add Device" or scan the Matter QR code on the device/gateway .
3. Network Configuration: Confirm your phone is connected to 2.4 GHz Wi-Fi, enter the Wi-Fi password, and wait for the connection to complete (usually 1-2 minutes) .
4. Gateway-Device Pairing: For sub-devices (e.g., Zigbee), open the gateway panel in the app and select "Add Zigbee Device" to complete pairing .

1.2 Connect to Alexa

Prerequisites

• Alexa App (latest version) installed.
• Compatible Alexa Hub (e.g., Echo Dot 4th/5th gen, Echo Show 8 2nd gen) added to Alexa App .
• Tuya device already connected to Tuya Smart App.

Connection Steps

1. Open Alexa App, tap the "+" icon in the top-right corner, then select "Add Device".
2. Choose "Other" > "Matter", then tap "Scan Code" .
3. Scan the Matter QR code on your Tuya device or enter the 11-digit pairing code.
4. Follow on-screen prompts to link your Tuya account with Alexa. Once successful, assign the device to a room for voice control.

1.3 Connect to Google Home

Prerequisites

• Google Home App (latest version) installed.
• Compatible Google Hub (e.g., Nest Mini, Nest Hub 2nd gen) set up .
• Tuya device named with simple English (e.g., "bedroom light") in Tuya Smart App .
• Network access to Google services.

Connection Steps

1. Open Google Home App, tap "+" > "Set up device" > "Works with Google" .
2. Search for "Smart Life" (Tuya's partner service) and select it.
3. Authorize the link between Google Home and Tuya Smart App. The app will automatically sync your Tuya devices.
4. Test with voice commands (e.g., "Ok Google, turn on bedroom light") .

2. Common Failure Causes & Solutions

3. Important Notes

• Wi-Fi Requirements: Only 2.4 GHz Wi-Fi (802.11 b/g/n) is supported; WPA2-PSK encryption with AES is recommended .
• Signal Strength: Maintain signal strength above -70 dB to avoid disconnection .
• Firmware Updates: Regularly update device firmware and apps to ensure compatibility .
• Matter Protocol: Most new Tuya devices support Matter, enabling seamless pairing across platforms without repeated configuration .
