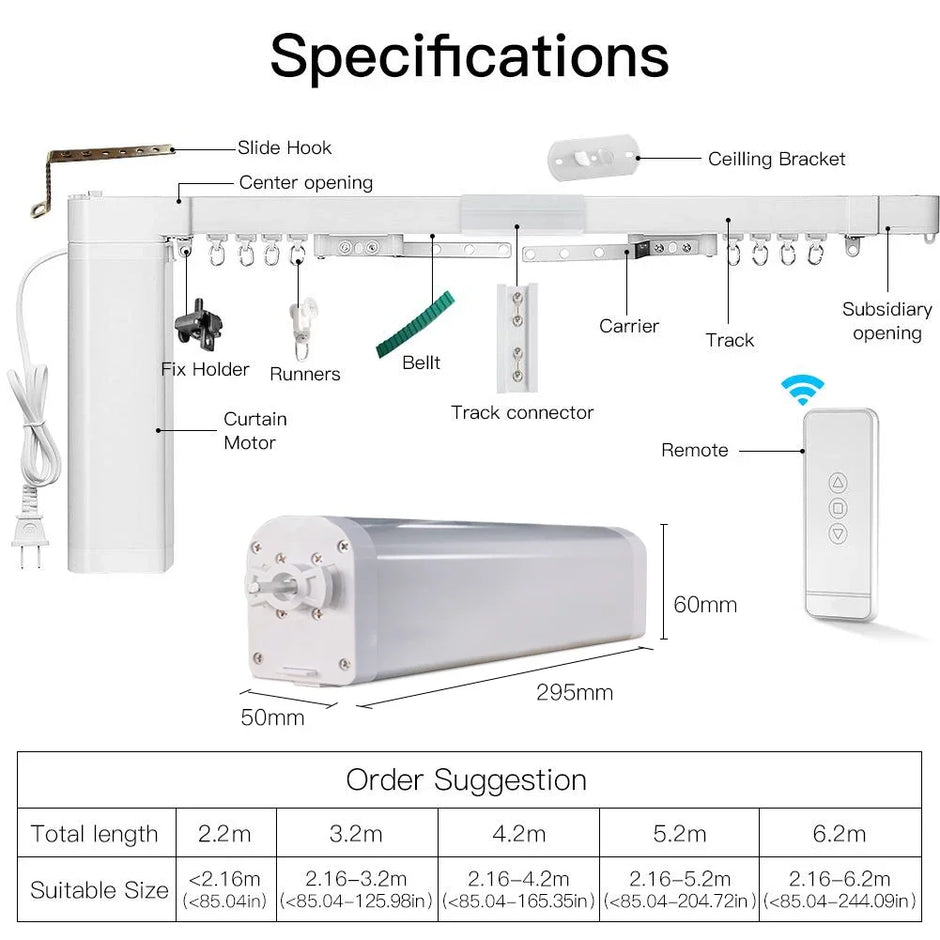

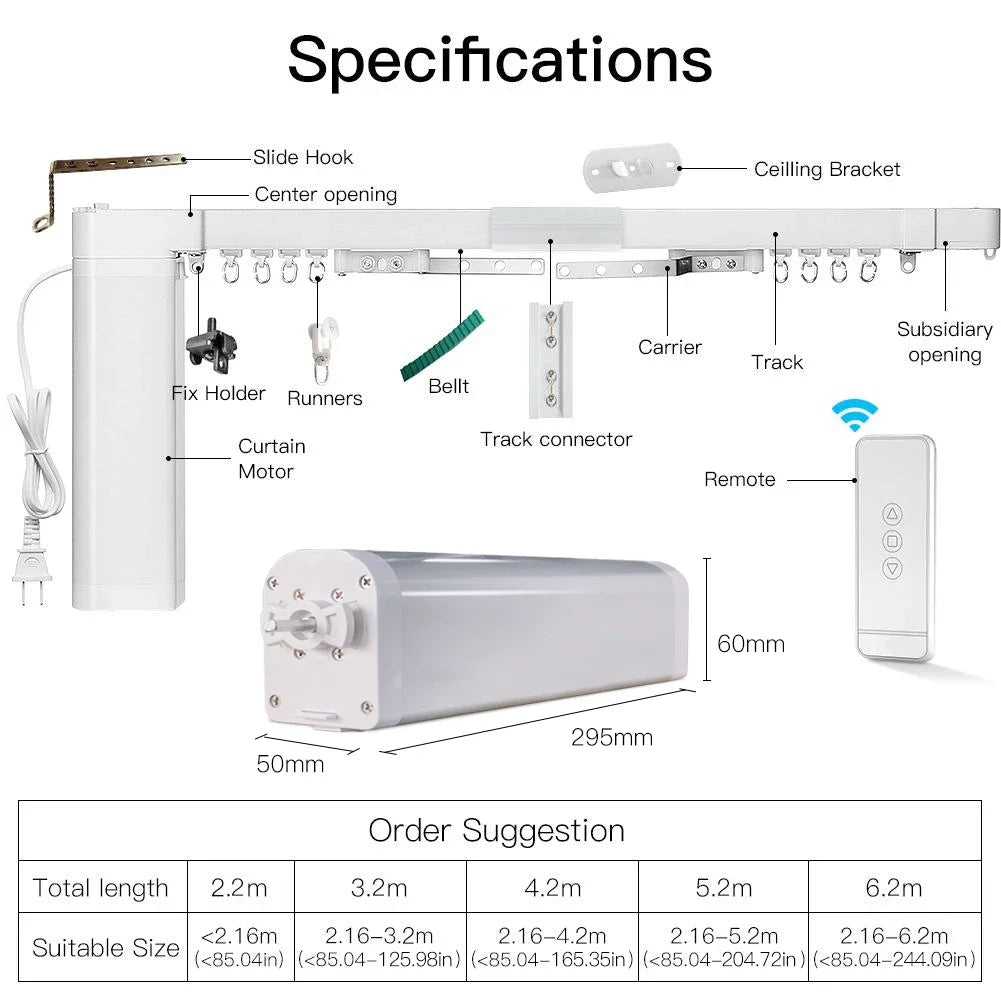

SPECIFICATIONS

Brand Name: MOES,MOES

Certification: CE,CE

Communication method: Zigbee,Wi-Fi

High-concerned chemical: None

Max Load-bearing: 50KG

Model Number: Smart Curtain Motor

Motor Speed: 90rpm`

Origin: Mainland China,Mainland China

Radio frequency: 2.4G/433Mhz

Rated Power: 18W

Rated Voltage: AC90-240V 50/60Hz

Rated torque: 1.8Nm

Track Length: 2.16m, 3.2m, 4.2m, 5.2m, 6.2m

Work Environment: -5°C~45°C

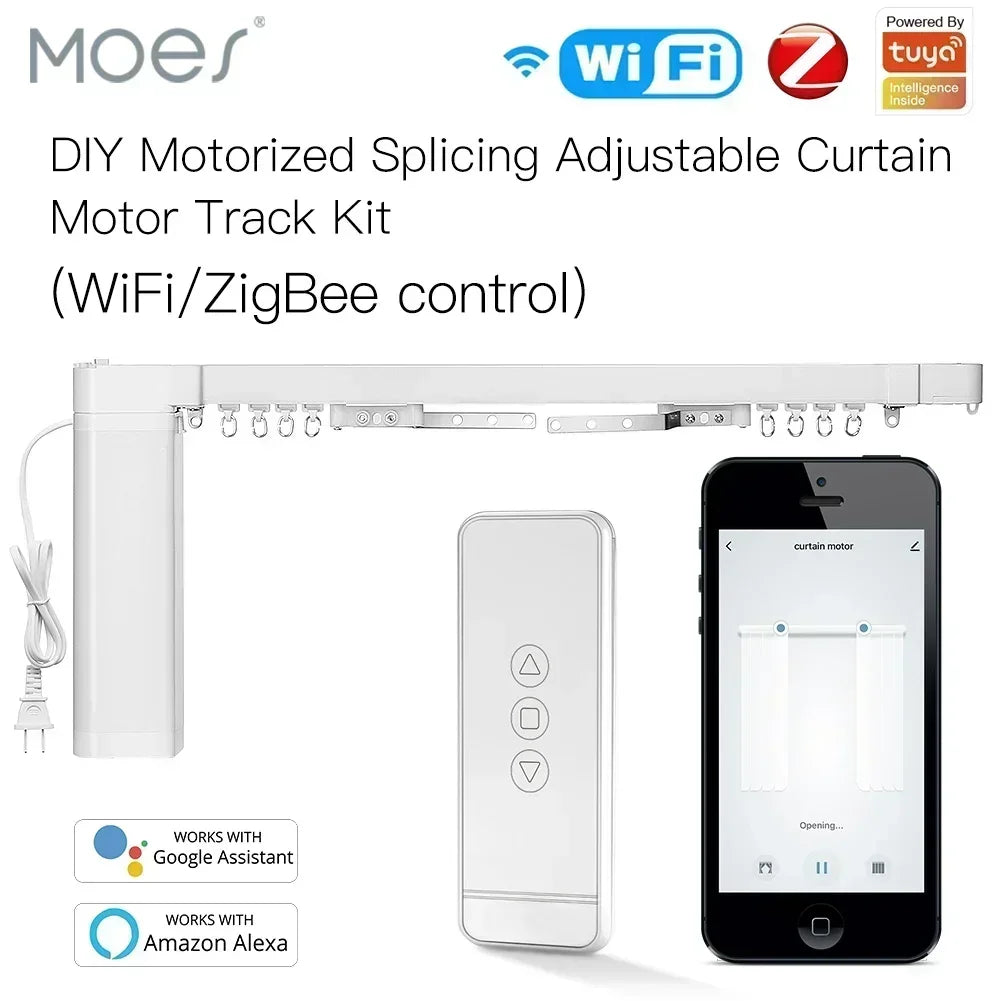

New Arrival Smart WiFi/ZigBee Electric Motorized Splicing Curtain Tracks System,Tuya Curtain Motor with DIY Track  RF Remote Smart Life Tuya APP Control Voice Control With Alexa Google Home
By Moes


Main Features:
1.【DIY tracks with splicing available,Strong applicability】
2.【Set to Your Schedule】
3.【APP Remote Control,Voice Control,RF433 remote control】
4.【Supports left/right installation,Supports single side and double side opening】
5.【Touch Motion Control】
6.【Obstacle Stop Function】

Package list:

Package with 1 Meter DIY tracks :including 1psc 0.5m+1psc 0.3m+1psc 0.2m curtain tracks .

Master(Suv gear box) 2 pcs.

Pulley 2 pcs.

Runner7 pcs/bag (2.2 Meter have 3 pags,add 1 meter tracks was add 1 bags).

Track connecting bracket (1pcs/ meter ).

Bracket--ceiling bracket default, no wall bracket (need to note and contact us first) and screws.

Belt 1 roll.

RF433 Hand remote 1pcs( Battery no including in the package)

Manual 2pcs

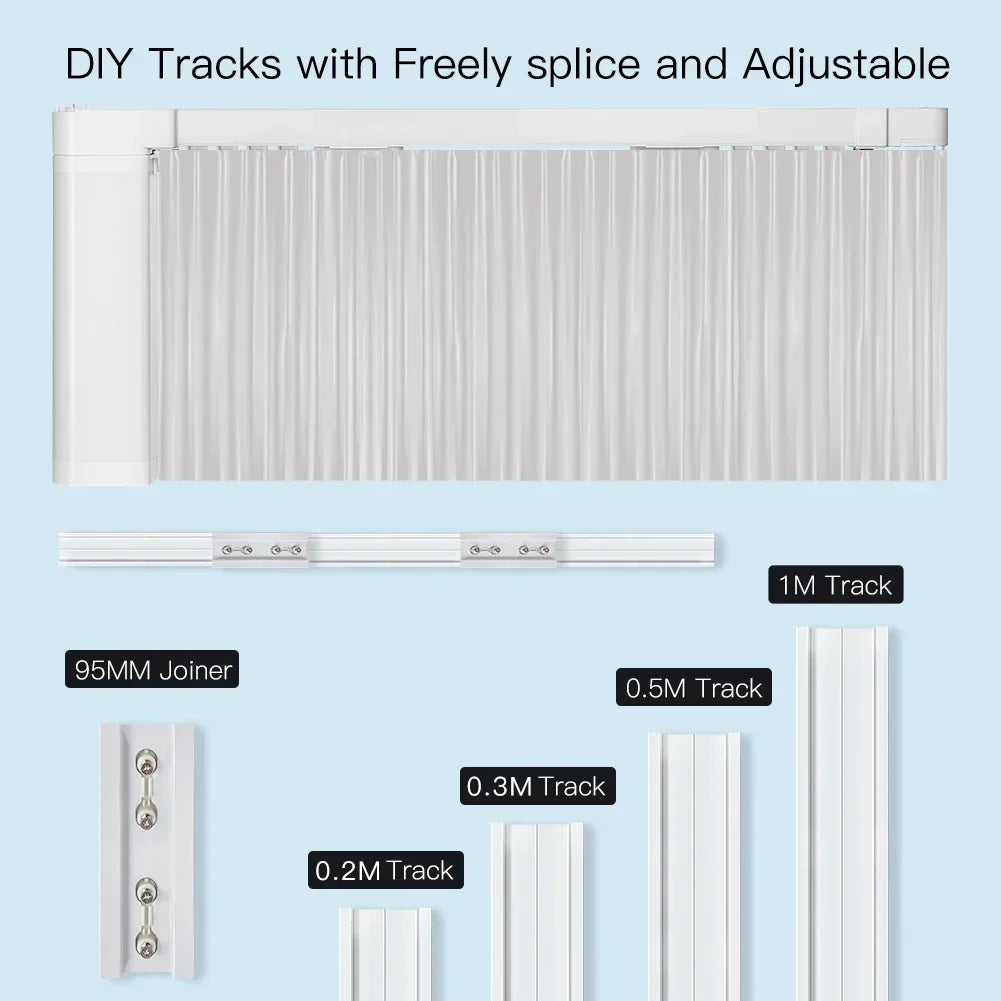

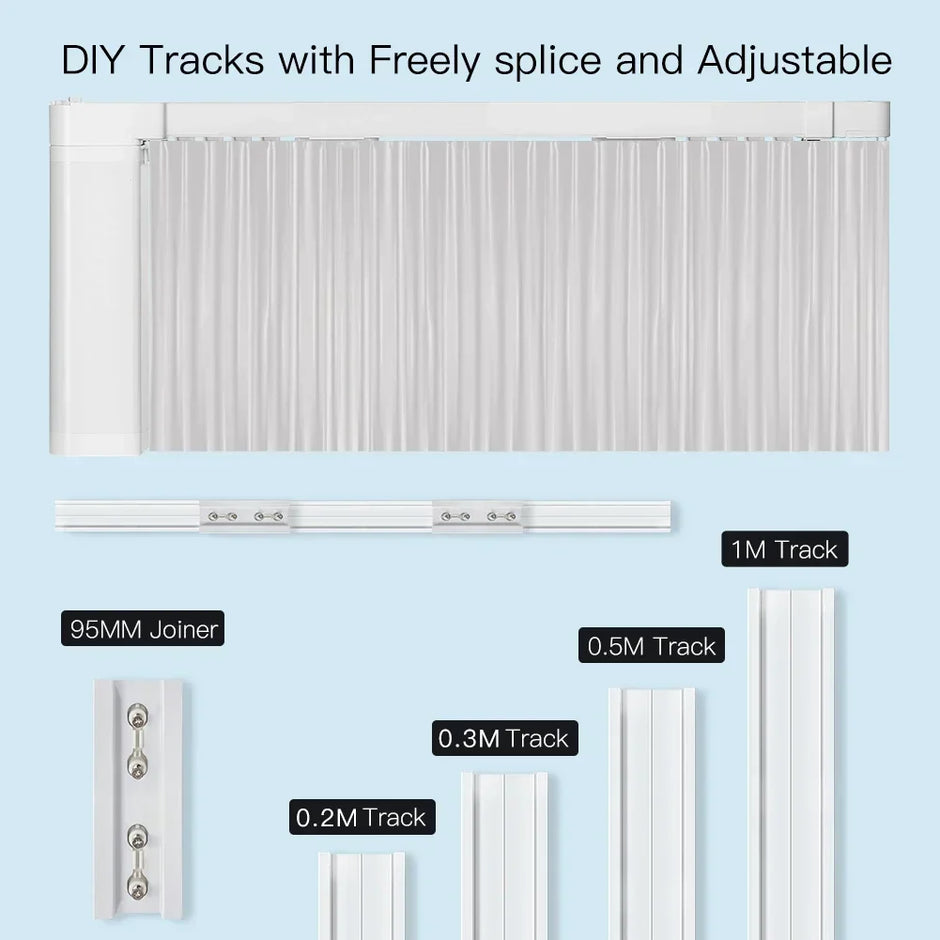

DIY tracks with splicing available:

Start with 1 meter DIY track to splice freely for adding 0.5m*1+0.3m*1+0.2m*1 to meet your own demand with any length

Different specifications of tracks contain different numbers of splicing blocks, which can be purchased according to actual needs

APP Remote Control
No matter where you are, you can remotely control connected devices through the Tuya Smart Life App

Touch Motion Control
Slightly pull the curtain to one direction by 5-10 cm while the motor is powered up, and the curtains will automatically open or close

Voice Control
Supports Alexa and Google Home voice, and can easily get the control of them via simple voice command

RF433 remote control
Built-in RF433 allows control via RF remote with no hub required

Set to Your Schedule
By programming, the curtains can automatically open and close at a predetermined time to adapt to your schedule.
Such as automatically opening the curtains at 8am to help wake up

Ultra-quiet Design

A Zigbee Hub is required for normal use of the curtain motor track
( Requirement for Zigbee curtain motor,WiFi motors do not require a gateway)

Different usage methods for single motors
According to practical applications, the motor can be installed on the left or right side
The curtain motor supports single or double opening,By implementing different installation methods, you can contact customer service to obtain videos

Dual motor, Dual track

If you plan to install two sets of curtains with dual tracks, you need to purchase two sets to achieve this
Attention: The dual track requires a special bracket. Please contact our customer service to leave a note

Measurement Method
Fully covering the wall
Measurement Method : Width : A's length -4cm

Partly covering the wall
Measurement Method : Width : A's length + 80cm

CURTAIN BOX SIZE & POWER CABLES RESERVED
The motor can be installed in any angle of the track , leave theoutlet around 40cm from the top

A.Straight single track of curtain boxLeave 10cm width
B.Straight double track of curtain boxLeave 1 8cm width
C.90 % angle curtain rod with single track of curtain boxLeave 15cm width
D.90 % angle curtain rod with double track of curtain boxeave 22cm width

Powered by Plug adapter for simple installation
Spliced easily with track connecting brackets

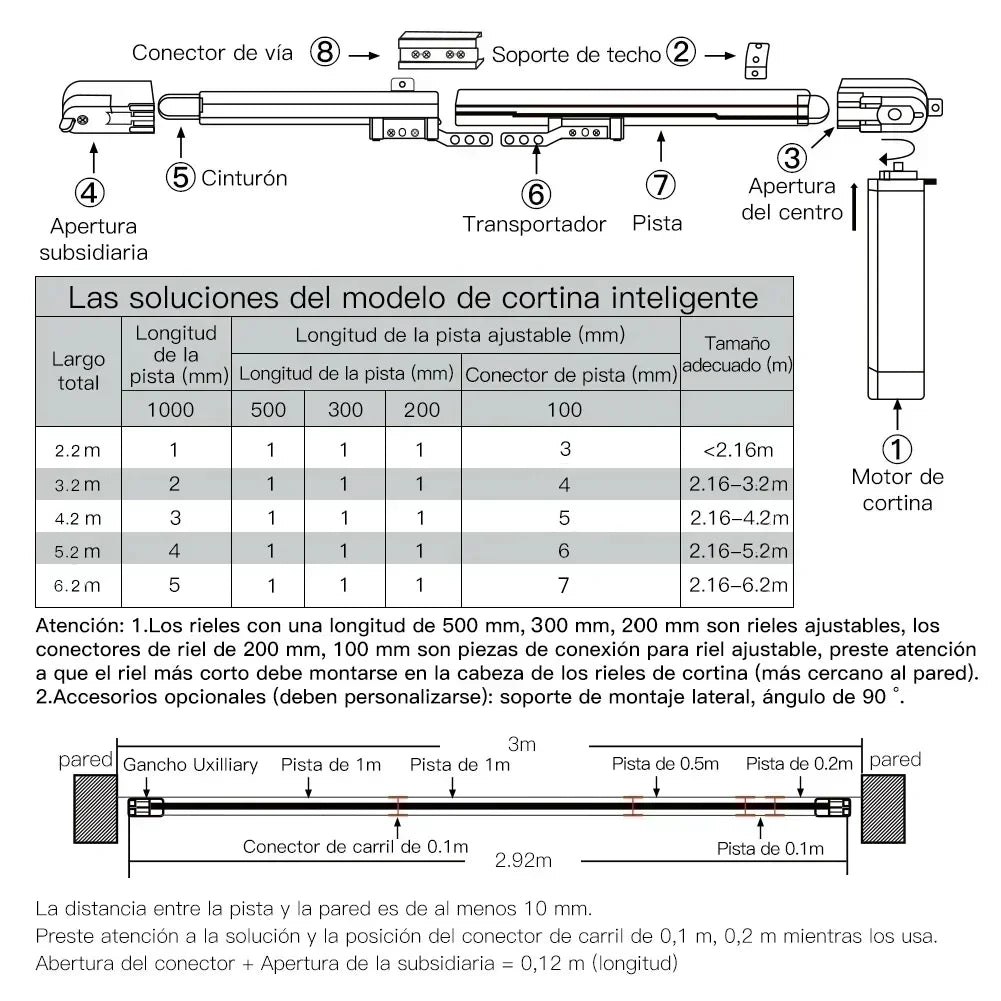

Curtain Track Dimension&Measurement

Note : 1.Curtain motor should be next to the AC power
         2.The ceiling must be able to bear the total weightof the whole devices

Q&A:

1.Q: Could I open the curtain from middle or from left to right?
A: Yes, it allows  to open to curtains from right to left, from left to right or from middle to both sides,you can just install them to your own need.
2.Q: I need a double track, what should i do?
A: You should get 2 set of it to make a double track, however, kindly leaves us message if u would like install double track to the wall, it need a special bracket.
3.Q:Does it work with Samsung smartthings?
A:No,this is the WiFi Tuya version and no hub required for it.And you can control it via Alexa for voice control.
4.Q: Could i stall them to a corner
A: Sure, but you should get a extra accessory ARC track in our store.click the below button to get the ARC track.
