SPECIFICATIONS

Backlight adjustment: Support

Battery Included: Yes

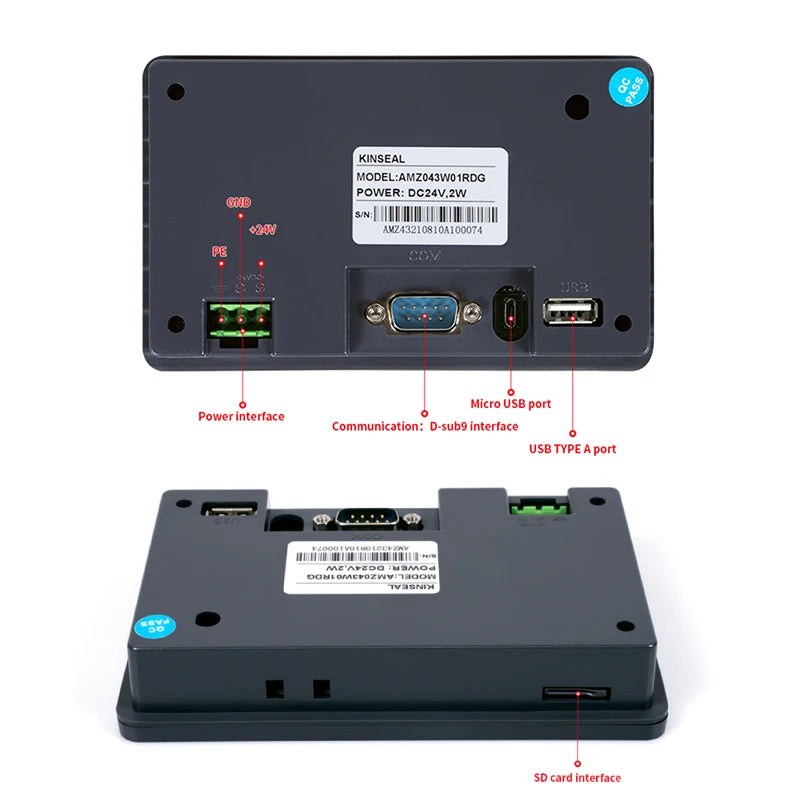

COM1 communication: RS485/232/422 communication

Download: SD card,USB download,U disk

High-concerned chemical: None

LCD: TN TFT LCD,300cd/m2

LCD resolution: 480X272;TN;

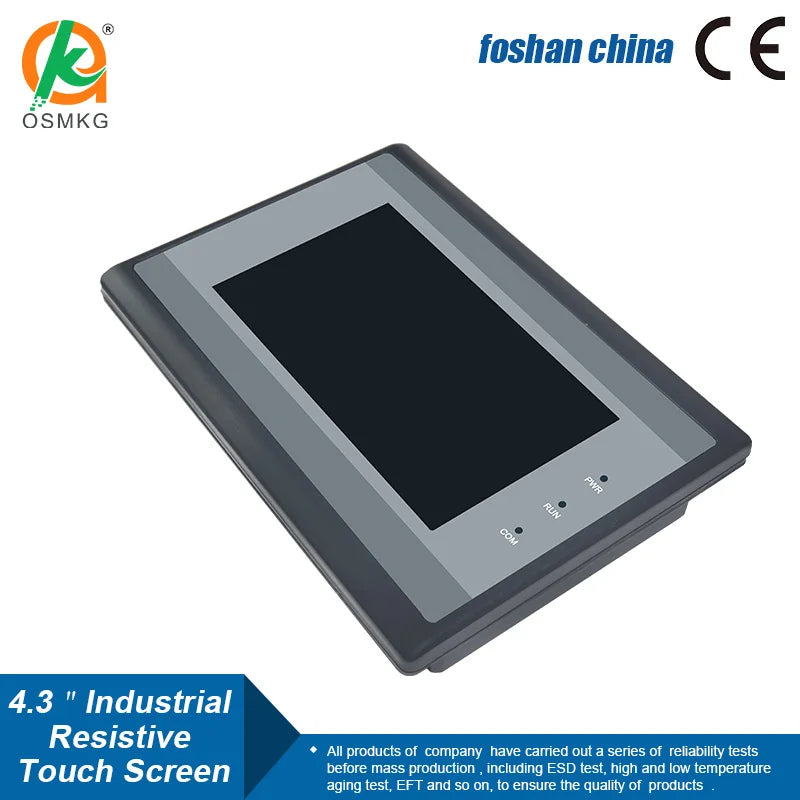

Model Number: OSM-TK043W01

Origin: Mainland China

Package: Yes

Power voltage: DC10-30V

RTC: Support

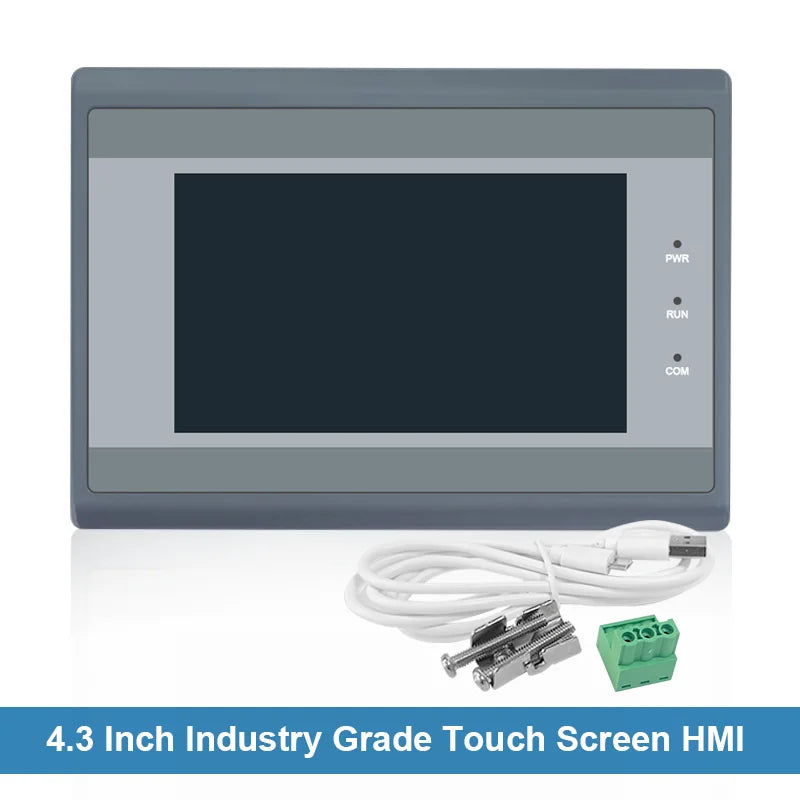

Size: 4.3 inch

Storage: 128Mbyte SPI NAND FLASH

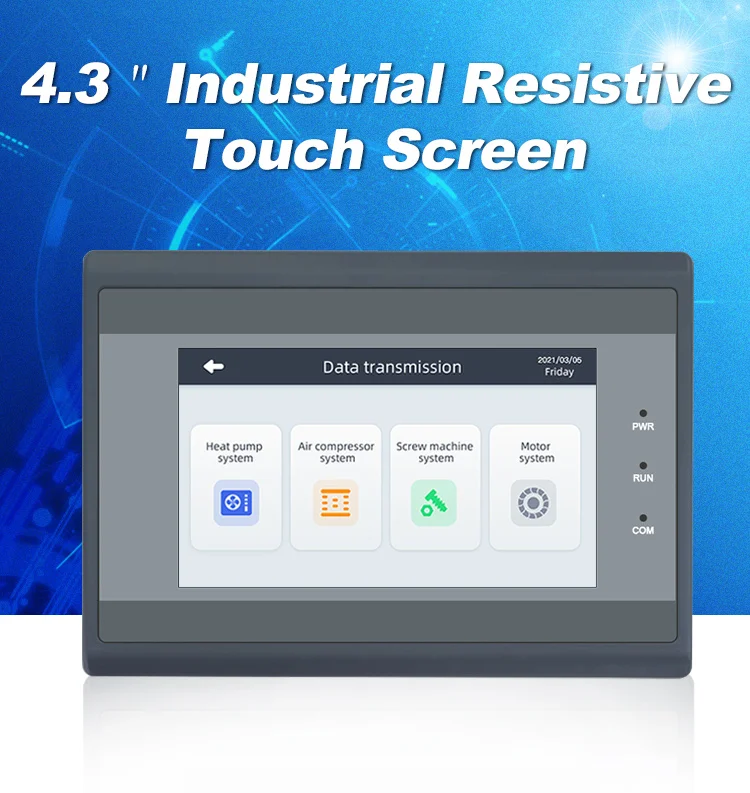

Touch: 4-wire resistive touch screen

Type: Industrial Computer Accessories

Product Description

CE&ROHS：Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards;Lightning surge +/ -2kV, EFT: +/ -4kV;

Electrostatic contact discharge，+/-6KV;Electrostatic air discharge +/-10KV.

Power protection：+/-2KV lightning surge protection capability

Protection grade ：The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20

Environmental humidity ：10~90%RH(non-condensing)

Operating temperature：-20℃~50℃

Storage temperature ：-40℃~70℃

Protocol：Modbus rtu

Module Selection :

4.3 inch hmi com1 : RS485/232/422 (three choose one)

hmi com 1 com2(485): com1 :RS485/232/422 (three choose one)

                                     com 2: RS485

hmi com1 com2(232):com1: 485/232/422 (three choose one)

                                   com 2: 232

Notice: This only touch screen not integrated plc all in one machine

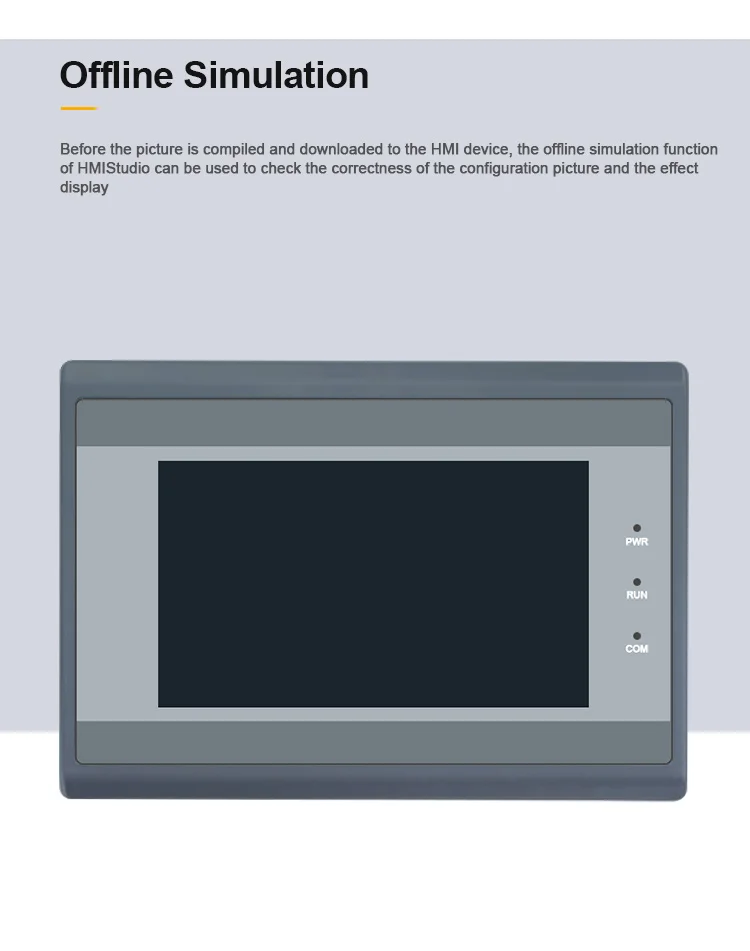

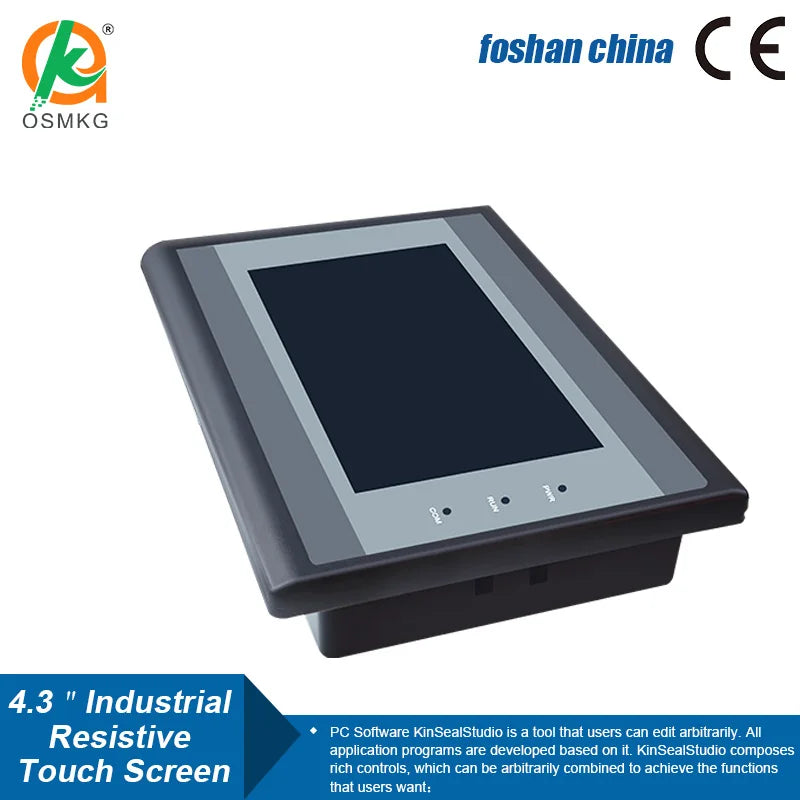

We provide the software to our customer of the hmi .

Customer can configuring the display by this software.

We also provide the instruction for hmi and software to our customer：

Instruction：

https://drive.google.com/file/d/1IoucPjqfBjz2tW9nQRsYrE1Q_YLxzH5q/view?usp=drive_link

https://drive.google.com/file/d/1lpotAm1JMmK_nH4l-96oA7-uPElMOuOx/view?usp=drive_link

Software

https://drive.google.com/file/d/17wbDixshw7Ftb5L1Tj6nFGN19NKgkPL-/view?usp=drive_link

How to contact us ?

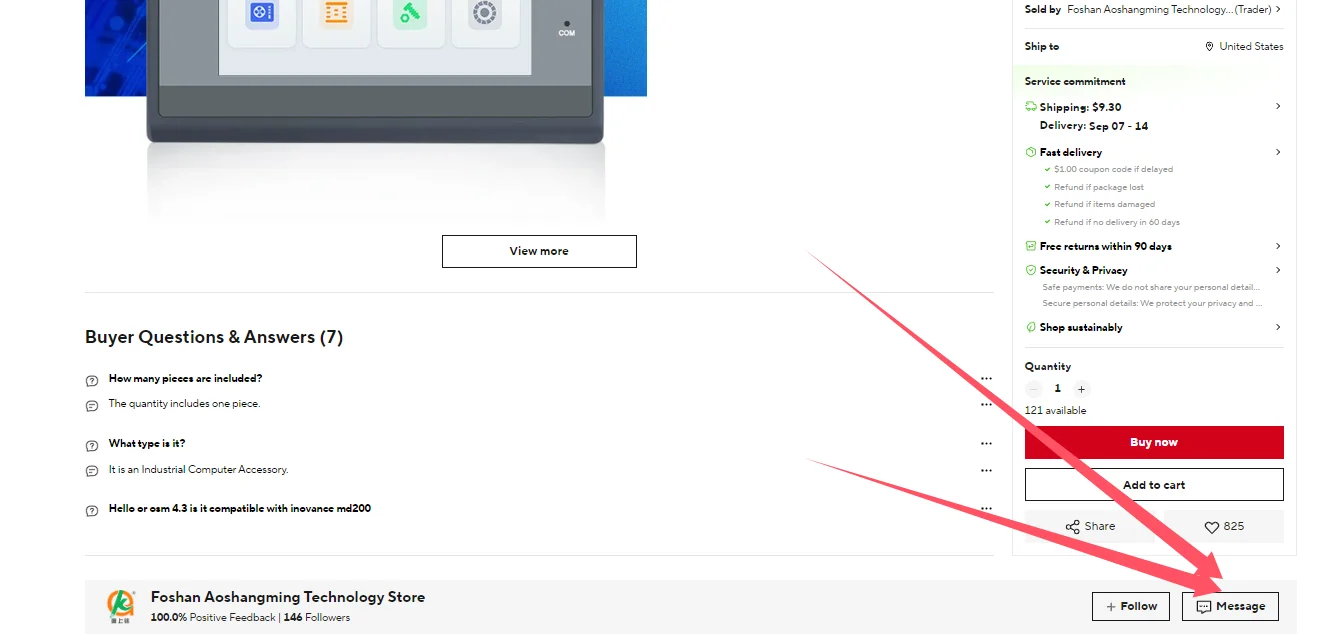

Dear Customer, any questions about the software or hmi, please leave us message with pictures or video through

aliexpress center (the entry is below the link ), so that our engineer can reply you soon. If out of working hours,

he may reply you tomorrow morning. Please wait patiently .Thank you for your understanding.

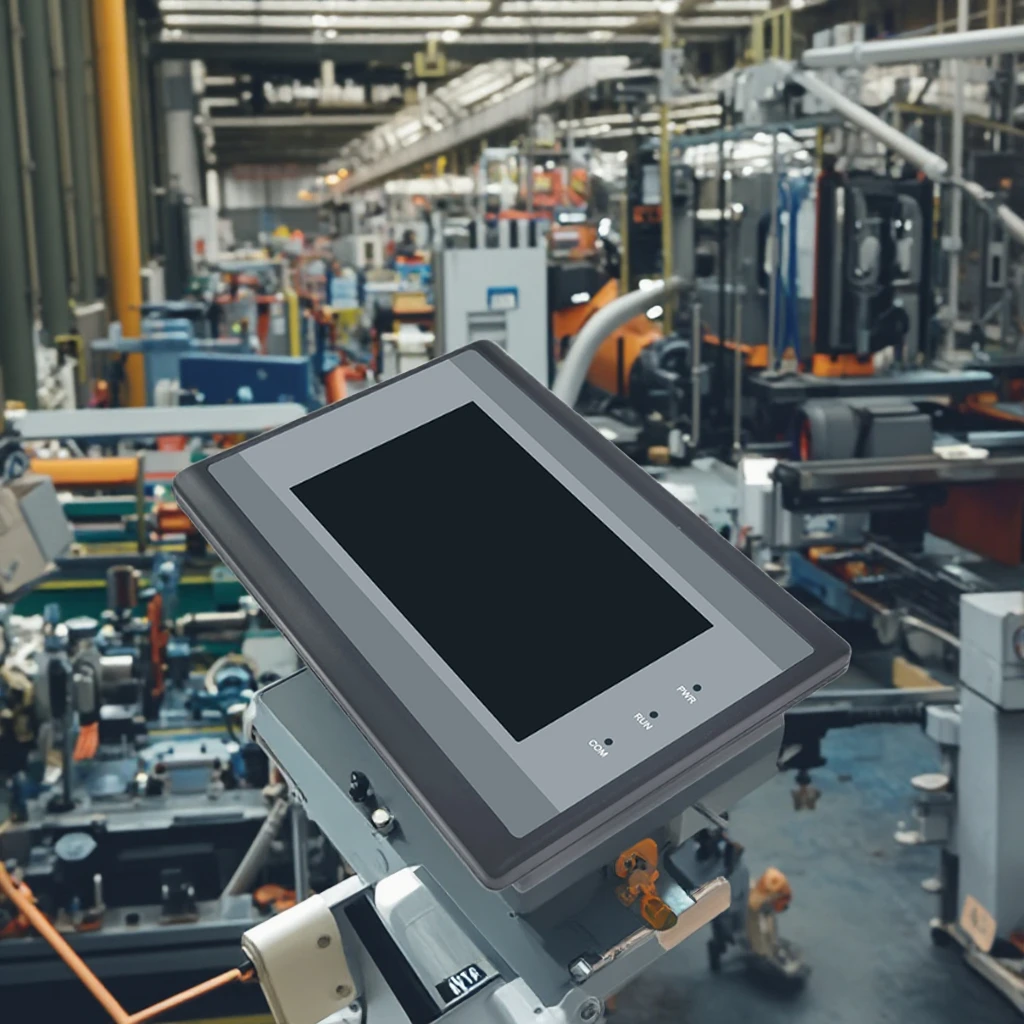

The touch screen is widely used in the fields of automotive instruments, storage only,

instruments and meters, artificial intelligence, home appliances, industrial automation equipment,

handheld equipment, medical equipment, security equipment and so on.

Company Introduction

Packing&Shipping

PACKING
Packaging Details: standard paper box

DELIVERY
Delivery Time: 3-5 days after payment for sample order
10-25 days after payment for big order

FAQ

Q1. What advantages do you have?

A: We have independent products, good quality products, excellent technical support and service.

Q2. How long is the quality guarantee?

A: Product quality warranty is one year.

Q3. What is the delivery time?

A: Normally, it is about 3-5 days after payment. It needs to be negotiated to special requirement orders.

Q4. How about the quality of your product?

A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing, the
necessary accessories and power adapter plug standard.

Q5. How do you keeping our long-term business and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
